GEN7iB
124
ACQUISITION AND STORAGE
ACQUISITION AND STORAGE
9

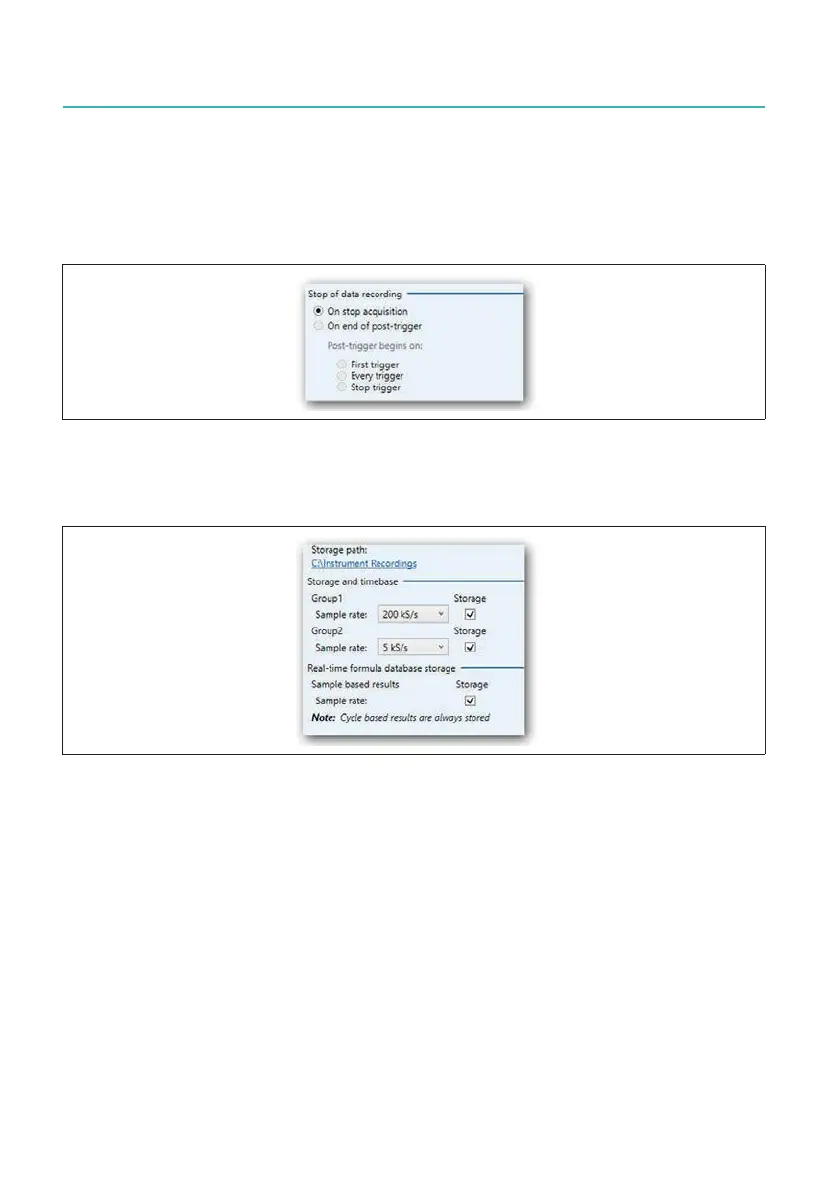

B In the Stop of data recording area, select the On stop acquisition checkbox (see
Fig. 9.17).
A continuous recording directly to a drive, from the start to the end of the acquisi-
tion time. Neither triggers are required nor used.
Fig. 9.17 Stop of data recording
C Data for Group1 is recorded at 200 kS/s and stored, for Group 2 at 5 kS/s and also
stored (see Fig. 9.18).
Fig. 9.18 Storage and timebase
