GEN7iB

SETTING UP THE GEN7iB

7.6 DC power output

06

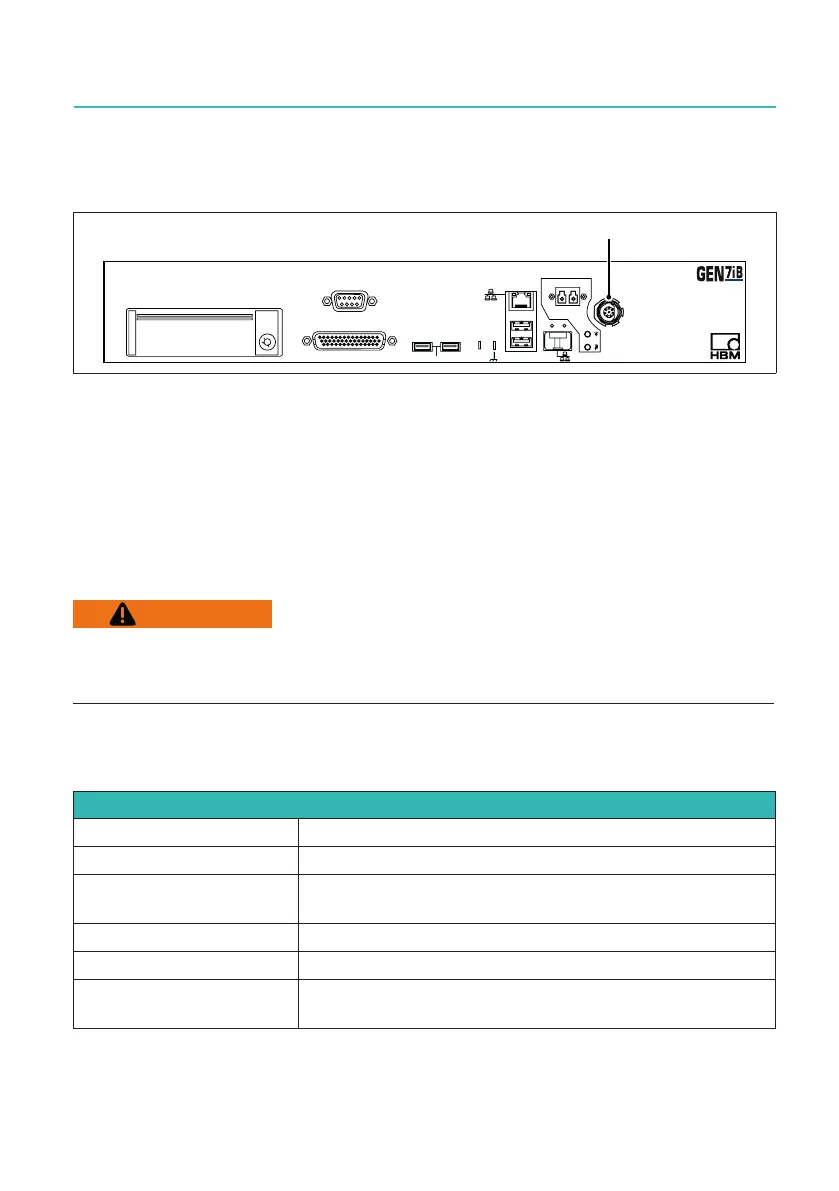

Fig. 7.14 DC power output

A DC power output

The system has a DC power output connector to power additional systems requiring a

DC input power.

The connection is set up to connect a QuantumX system to the GEN series mainframe

directly. It uses a QuantumX compatible connector.

WARNING

QuantumX can connect multiple systems together and attach them all to one power supply.

As the power of the GEN series mainframe is limited, make sure not to exceed the maximum

power output of this connector.

For more information on using the QuantumX together with GEN series mainframes,

please refer to „Synchronizing GEN series and QuantumX using PTP“ on page 477.

DC Power Output

Connector type

ODU, G81L0C-P08LFG0-0000

Mating connector type

ODU,SX1LOC−P08MFG0−0000

Connector pinning

QuantumX compatible; only GND and PWR signals con-

nected

Output Power

30 Watt

Output Voltage 21.4 V to 26 V

Maximum Output Current 1.35 A to 1.85 A; Limited current and short circuit pro-

tected
