6.4 Acquisition
GEN7iB is a multi-channel modular Data Acquisition System. It provides real-time data
forwaveformandmeterdisplays.Itallowsunlimitedrecordingdurationandlesizeat
a high streaming rate. Statistics are performed in real-time. Its extreme performance
signalconditioningincludesbothBesselandButterworthanti-aliaslterstoprovide
excellent response.
%DVLF
,VRODWHG
:LGHEDQG
8QLYHUVDO
,QSXW&KDQQHO %ORFN 'LDJUDP
%ULGJH
+LJK6SHHG'LII
06VRU06V
7LPH'RPDLQ
,VRODWLRQ
%DUULHU
'LJLWDO(YHQWV
DQGWLPHUFRXQWHU )LEHU2SWLFLVRODWHG
1RWDYDLODEOHRQDOOFKDQQHOV
$'&
)UHTXHQF\'RPDLQ
6HOHFWDEOH$QWL$OLDVLQJILOWHU
9DULDEOH
*DLQDQG2IIVHW
$'&
'63

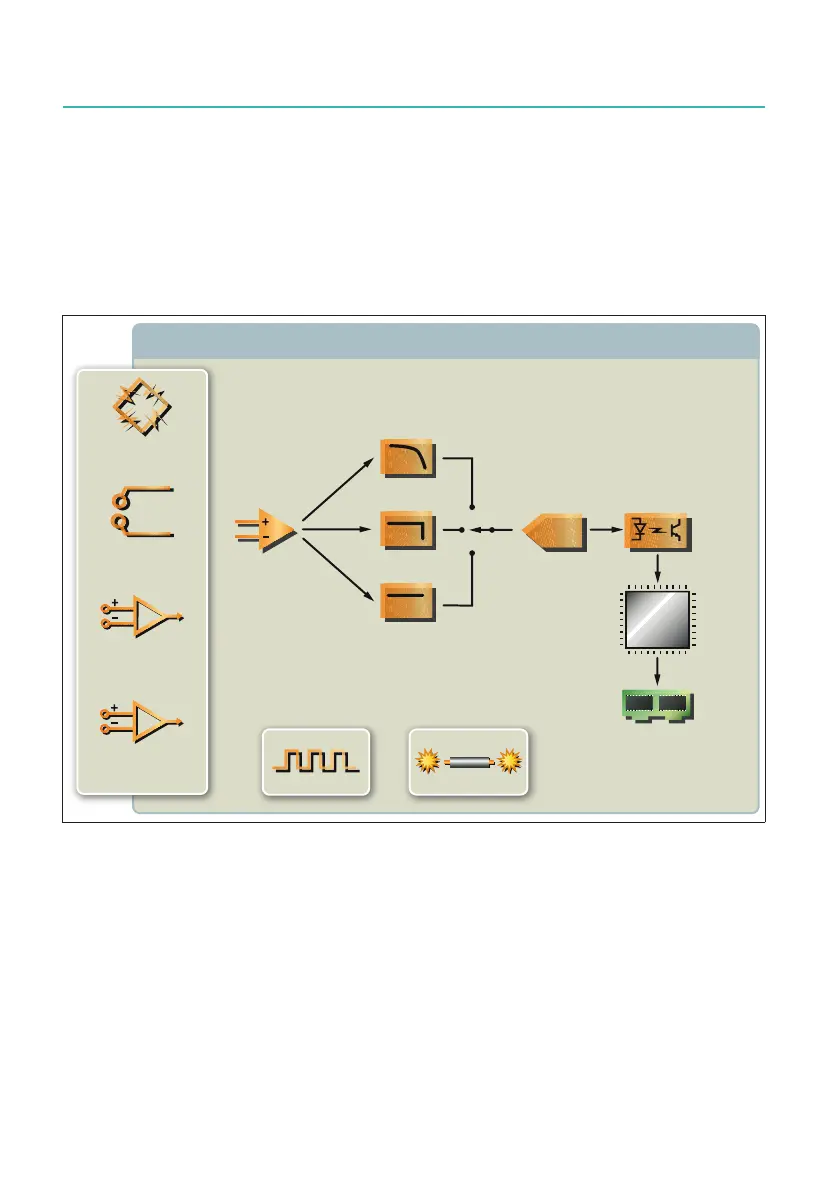

Fig. 6.4 Input channel block diagram
It also functions as a transient recorder with a hardware trigger on all channels with
hysteresis, delay and logic features. Transient memory is huge and can capture min-
utes of data on all channels. Segmented sweeps are displayed with no dead time and
the recorder has a wide analog bandwidth.

HBK GEN7iB GEN Series Specifications

General

Brand	HBK
Model	GEN7iB GEN Series
Category	Measuring Instruments
Language	English
