GEN7iB
239
INPUT CARDS
INPUT CARDS
12
Limit for safe voltage and currents is set in the IEC61010-1
Normal operation Single fault condition
Voltage
70 V DC 140 V DC
33 V RMS 55 V RMS
46.7 V peak 78 V peak
Current 2 mA DC 15m A DC
0.5 mA RMS 3.5m A RMS
0.7 mA peak 5 mA peak
It is good practice to use isolated measurement cables. However, since the voltage
range of the Isolated Basic card falls below the low voltage limit for accessible parts,
non-protected or non-shrouded connectors can also be used with this card.

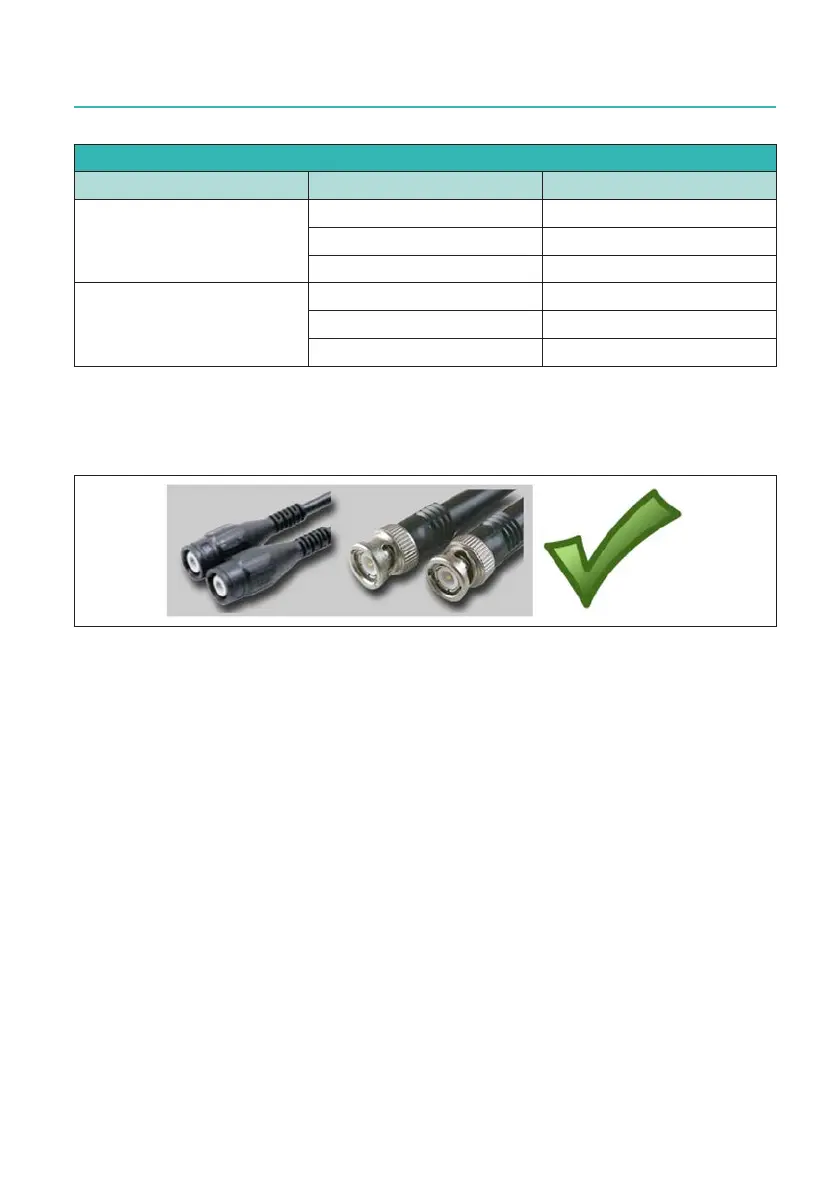

Fig. 12.56 Safe connectors for use with Isolated Basic acquisition cards
12.4.4 Understanding the GN815 and GN816 isolation
Thespecied±50VDCvoltagerangeoftheIsolatedBasicacquisitioncardissuch
thatitfallsbelowthelowvoltagelimitasspeciedinIEC61010-1.
The isolation of the Isolated Basic card (GN815 and GN816) is in line with the limit for
safe voltage and currents as mentioned above.
