TROUBLE-SHOOTING

TROUBLE-SHOOTINGD

D.5.3 Starting recovery partition restore

Therecoverypartitionrestoreprocessstartswithaconrmationrequest.

CAUTION

All data on the recovery partition will be erased. The GENSystem partition that contains

Windows

installation and any previously recorded data is not erased.

Check the I understand the consequencesboxandconrmwithYes.

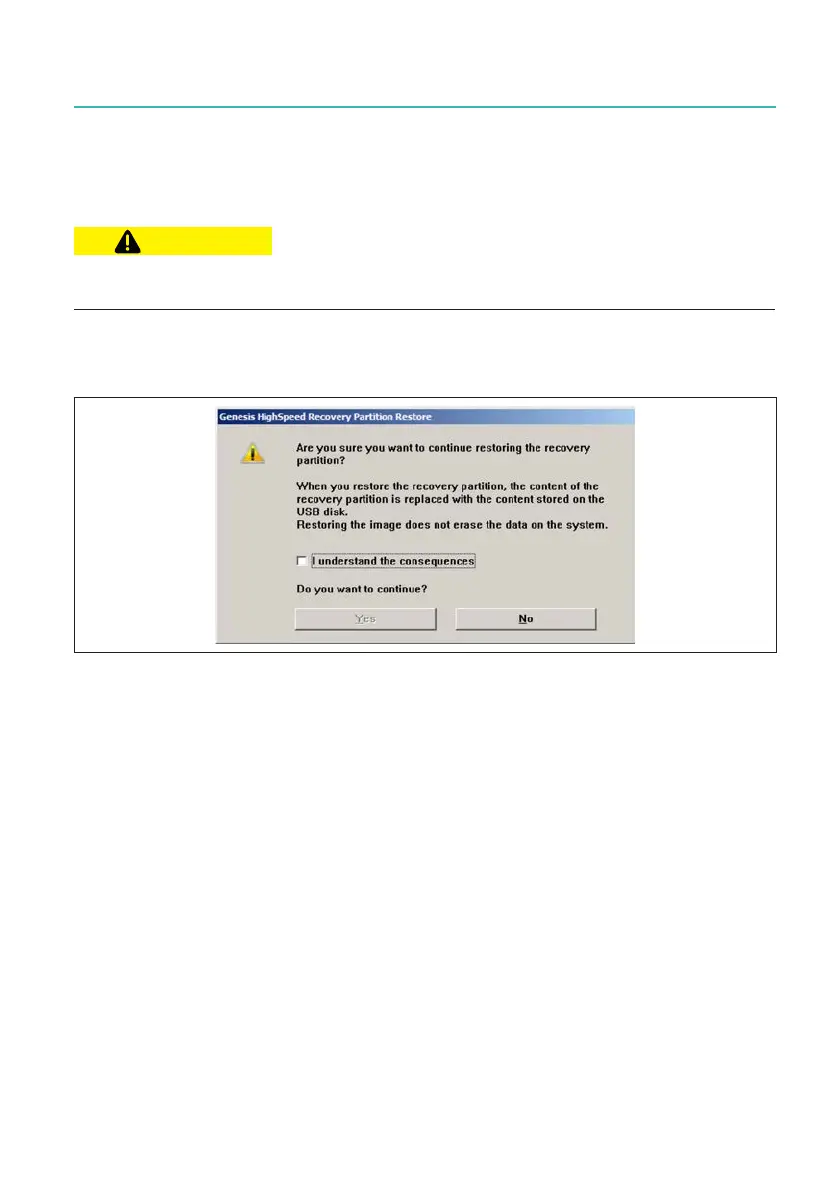

Fig. D.25 Genesis HighSpeed Recovery Partition Restore
