INTERFACE/CONTROLLER

11.6 Option - Optical 1 Gbit Ethernet interface

The Interface/Controller supports an optical 1 Gbit Ethernet interface by means of an

SFP module. An SFP module is a small, form-factor and pluggable transceiver that

supports direct optical network connections.

WARNING

Laser Safety

The system is classied as a Class 1 laser product. The SFP uses an optical light source for

data and command communication. It does not emit hazardous light, but direct exposure to

the beam should be avoided.

This simple and powerful plug-in-and-use option enables the use of an optical network

connection on the Interface/Controller. There are two models available to choose from:

● 1 Gbit (850 nm) - Multi Mode

● 1 Gbit (1310 nm) - Single Mode

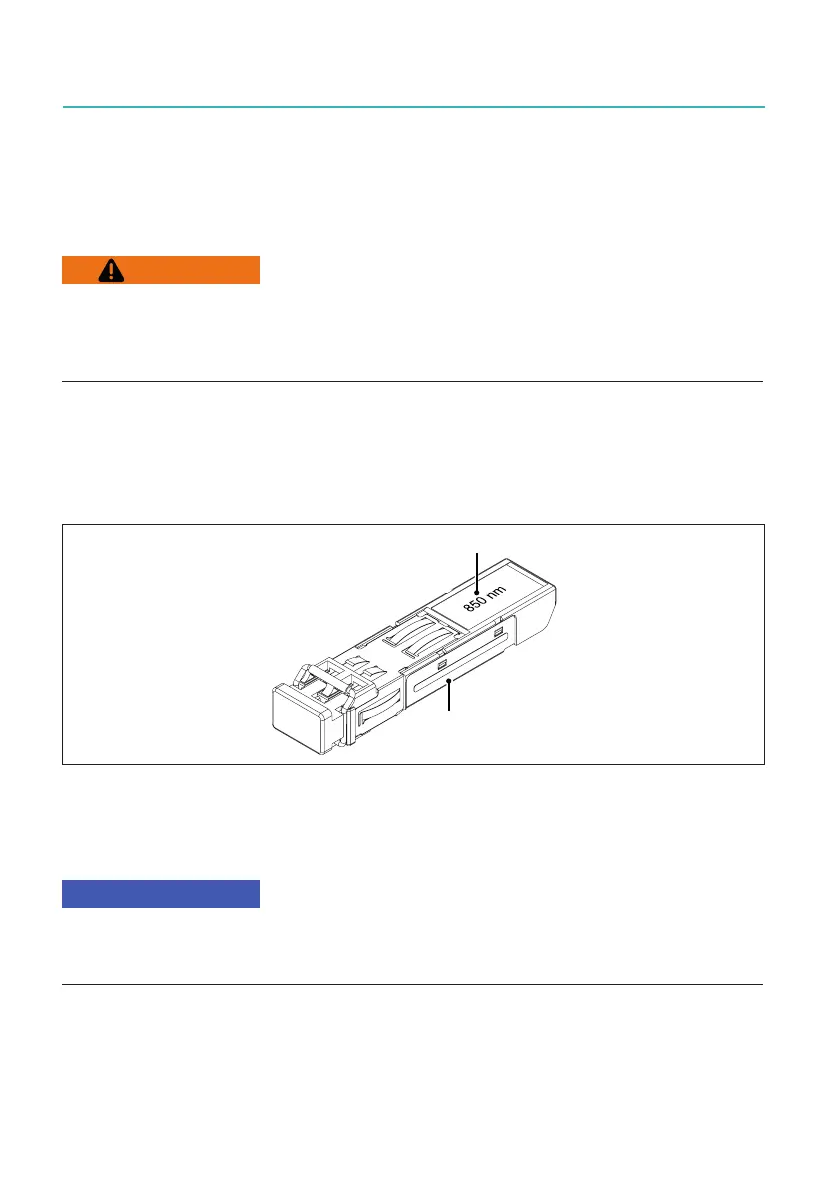

Fig. 11.16 SFP optical network device

A SFP shown with dust cap and removal bar

B SFP label - 850 or 1310 nm

Notice

1310 nm Single Mode (SM) and 850 nm Multi Mode (MM) optical ber transceivers use spe-

cic cables. Therefore, make sure that the correct mode/specication of ber optic cable is

used.
