GEN7iB

163

INTERFACE/CONTROLLER

Forspecicationsandorderinginformation,pleaserefertotheGEN7iBDataSheet.

Verication

To verify that Local Storage is enabled:

1. Connect to the mainframe

2. Navigate to the Settings tab; Mainframe Disk 1 must be visible:

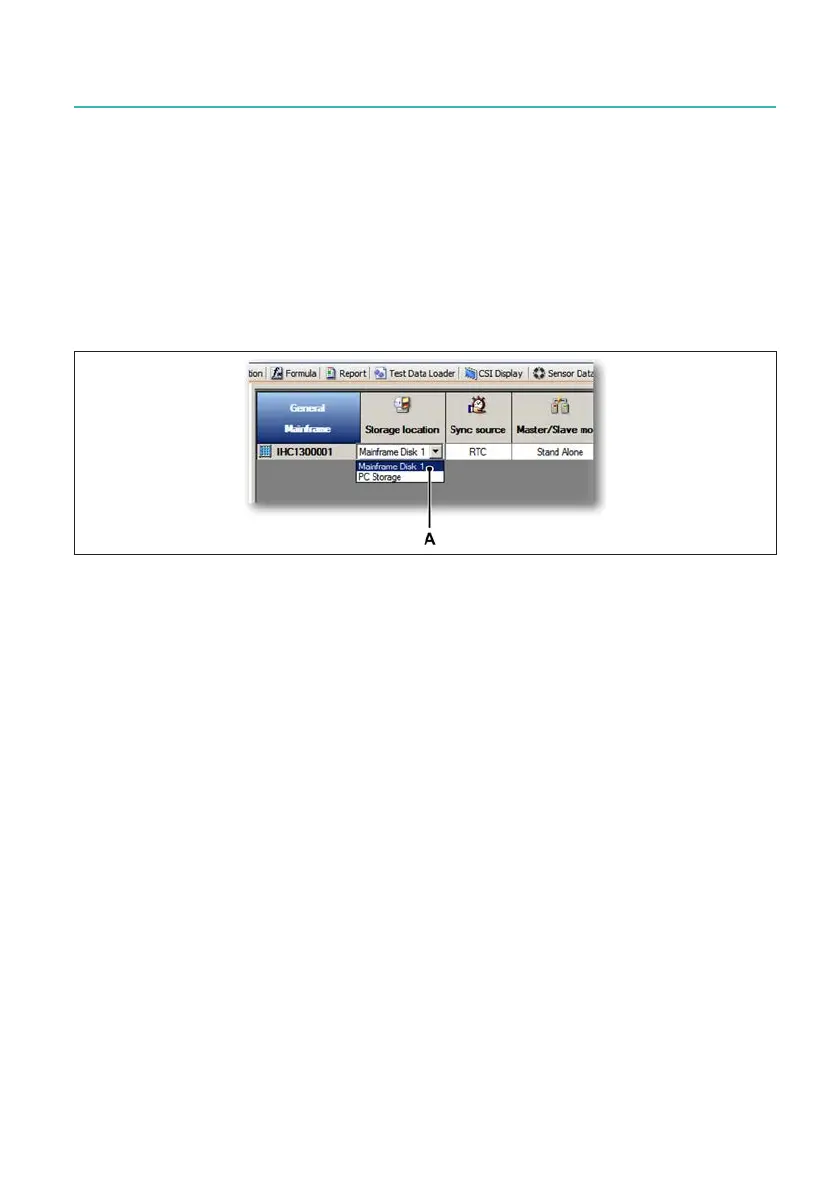

Fig. 11.15 Storage location with Mainframe Disk 1 enabled

A Storage location option
