GEN7iB
157
INTERFACE/CONTROLLER
INTERFACE/CONTROLLER
11

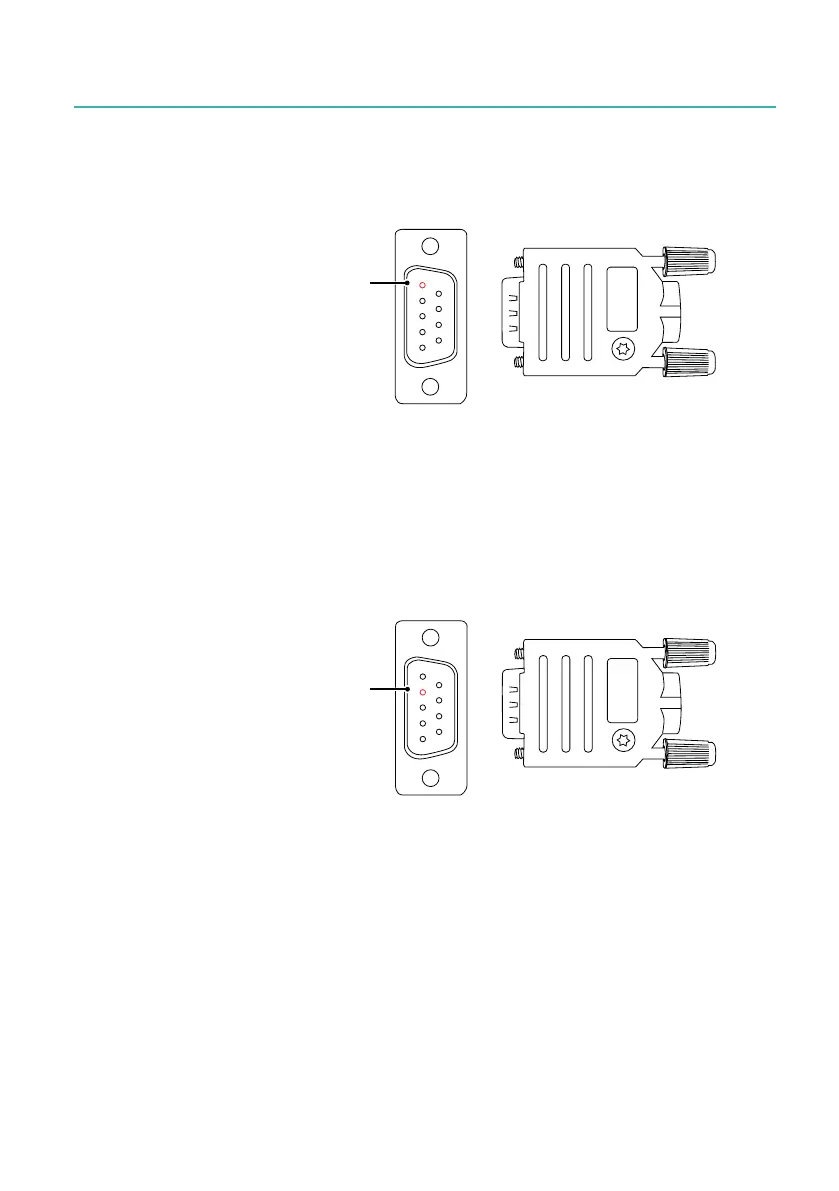

11.4.2 I/O connector functions and connector pinning
A External Event In
3,1([WHUQDO(YHQW,Q
3,1([WHUQDO(YHQW2XW
3,1([WHUQDO7ULJJHU,Q
3,1*URXQG
3,1*URXQG
3,1([WHUQDO6WDUW,Q
3,1([WHUQDO7ULJJHU2XW
3,1([WHUQDO6WRS,Q
3,19
$
This input is software selectable between External Cycle Event In and Trigger
Arm.
External Cycle Event In can be used in RT-FDB context as cycle source.
Trigger Arm can be used to arm triggers within in the mainframe. For more
information about External Event In and RT-FDB usage, please refer to chapter
„External Event In use with RT-FDB“ on page 161.
B External Event Out
3,1([WHUQDO(YHQW,Q
3,1([WHUQDO(YHQW2XW
3,1([WHUQDO7ULJJHU,Q
3,1*URXQG
3,1*URXQG
3,1([WHUQDO6WDUW,Q
3,1([WHUQDO7ULJJHU2XW
3,1([WHUQDO6WRS,Q
3,19
%
This output is software selectable between Alarm Out, Recording Active Out and
Trigger End. When alarm is selected, the output is driven by channel alarm detec-
tors or RT-FDB alarm functions. When recording active is selected, the output is
“high” while a recording is in progress. When recording in Trigger Arm mode with
Trigger End enabled a pulse of 500 ms ± 100 ms is generated at the end of the
sweep recording.
