2. Thermocouple breakout G089

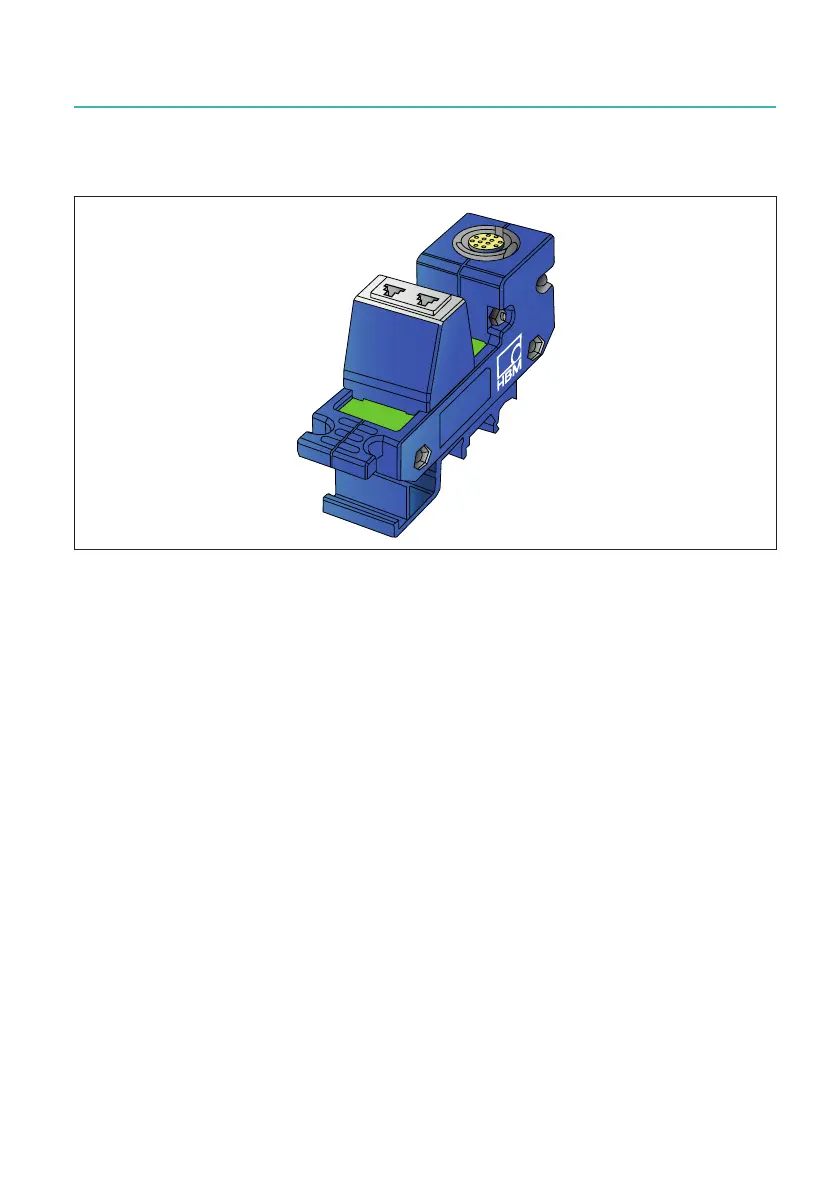

Fig. 12.85 DIN rail mountable breakout block (1-G089-02)
TheG089isspecicallydesignedtosupportthermocoupleinputconnectionsto/from
the GN840B/GN1640B card. The built-in digital cold junction sensor is used by the
GN840B/GN1640B card to compensate the thermal errors caused by the sensor to
measurement junction.
ThebreakoutsupportsaashmemorytoenableTEDSinformationtobewritteninto
the breakout. Using TEDS, the breakout can be made uniquely recognizable by the
controlling software, avoiding hours of system setups.
