GEN7iB
370
TROUBLE-SHOOTING
TROUBLE-SHOOTING
D
3.
After the image has been applied, a key must be pr
essed to restart the system.
Press any key that the pr
ocess is complete when prompted.

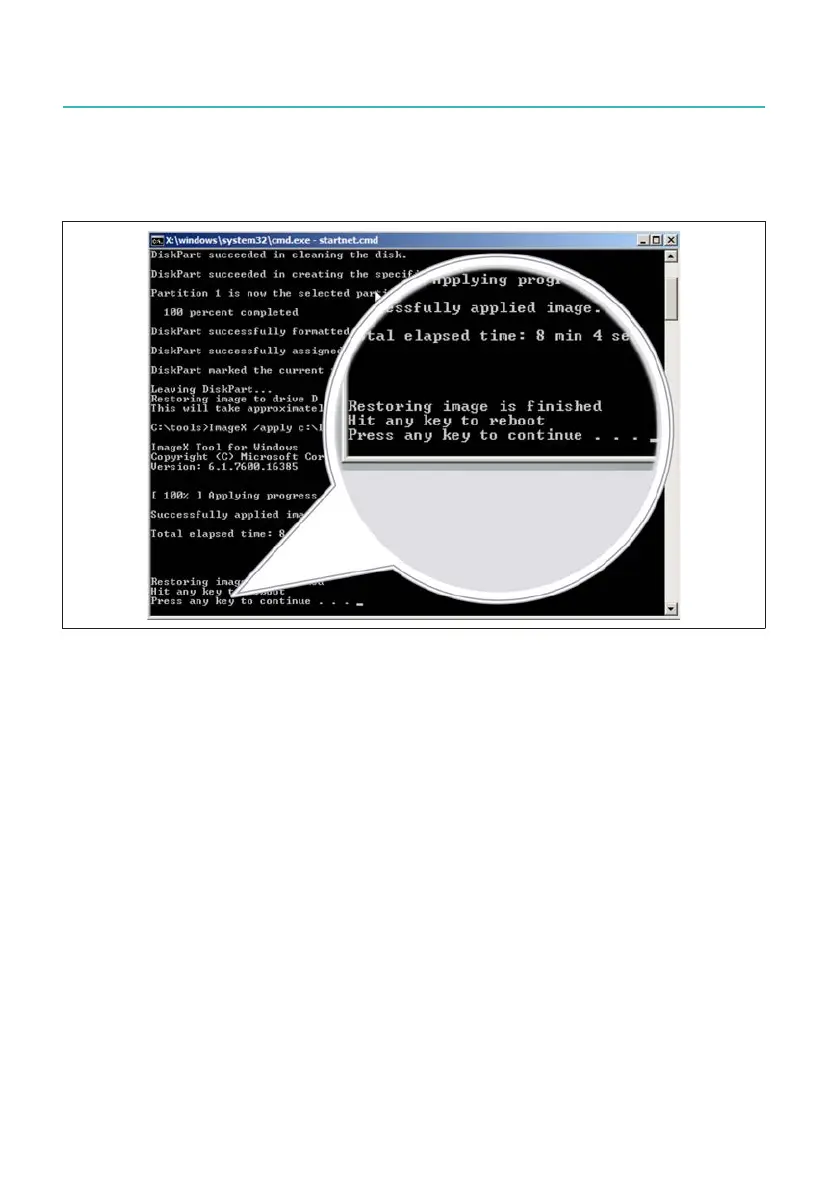

Fig. D
.7
Image restor
e completion
369
371
Table of Contents
