HBK GEN7iB GEN Series User Manual

GEN7iB
503
APPLICATION SPECIFIC USAGE
APPLICATION SPECIFIC USAGEH

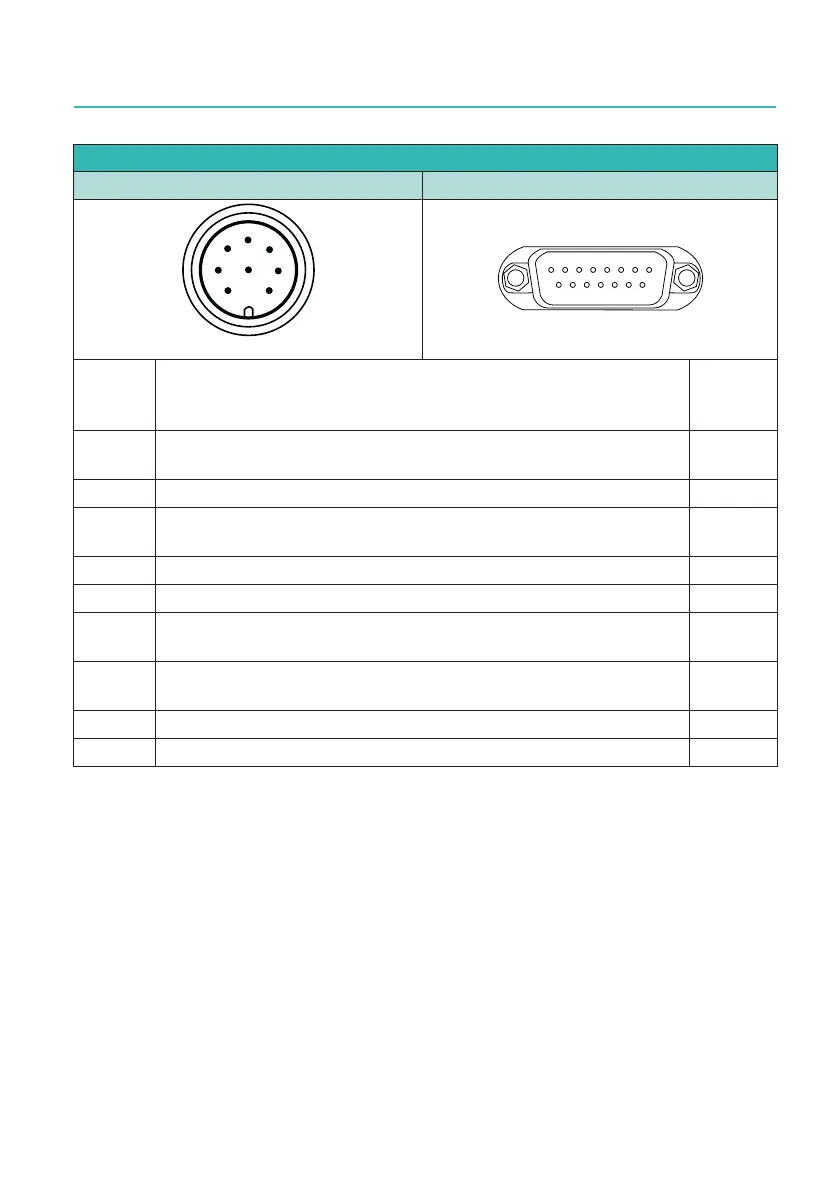

T12 Speed / Txx adapter speed
T12 speed Txx adapter speed






7RSYLHZ
  
    
 


Plug pin Assignment TXX
adapter
Speed
1 Rotational speed measurement signal
(pulse string, 5 V; 0°)
Pin 12
2
Reference signal (1 pulse/revolution, 5 V
)
Pin 2
3
Rotational speed measurement signal
(pulse string, 5 V; 90° phase shifted)
Pin 15
4 Reference signal (1 pulse/revolution, 5 V) Pin 3
5 Not in use
6 Rotational speed measurement signal
(pulse string, 5 V; 0°)
Pin 13
7 Rotational speed measurement signal
(pulse string, 5 V; 90° phase shifted)
Pin 14
8 Operating voltage zero Pin 8
Shielding connected to housing ground
