SETTING UP THE GEN7iB
SETTING UP THE GEN7iB
7
Digital Event/Timer/Counter
³´
³´
/RJLFYDOXH
,QSXWYROWDJH
   

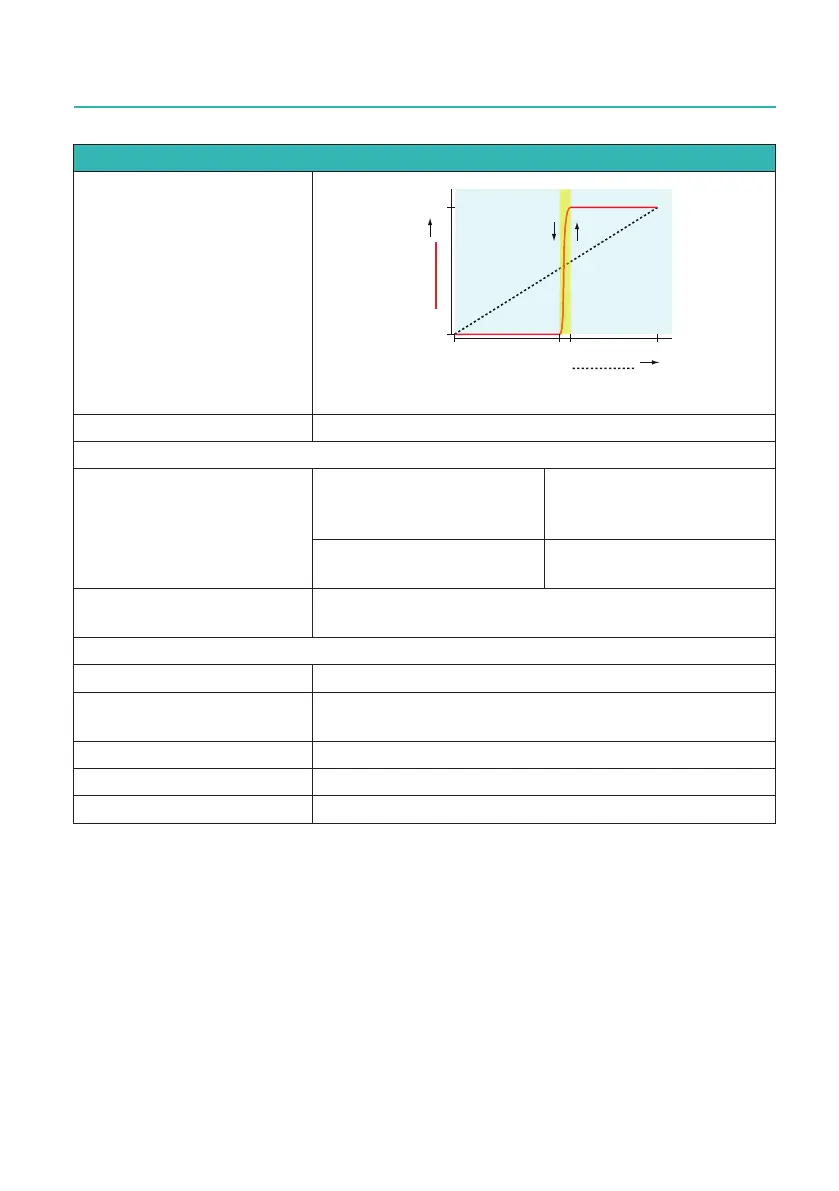

Fig. 7.18 Logic threshold voltage levels
Overvoltage protection ± 30 V DC
Timer/Counter
Number of channels GN310B/GN311B and
GN610B/GN611B input
cards
(1)
Other input cards
Four per card
Two cards per connector
Two per card
Two cards per connector
Functions Seespecicationsofacquisitioncardsthatsupport
these inputs
Outputs
Number of outputs Two per card, two cards per connector
Functions Seespecicationsofacquisitioncardsthatsupport
these outputs
Output levels TTL compatible; 0 V < Low < 0.6V; 2 V < High < 5 V
Output resistance 49.9Ω±1%
Maximum output current 50 mA, short circuit protected
(1) Perception 8.22 or later required
