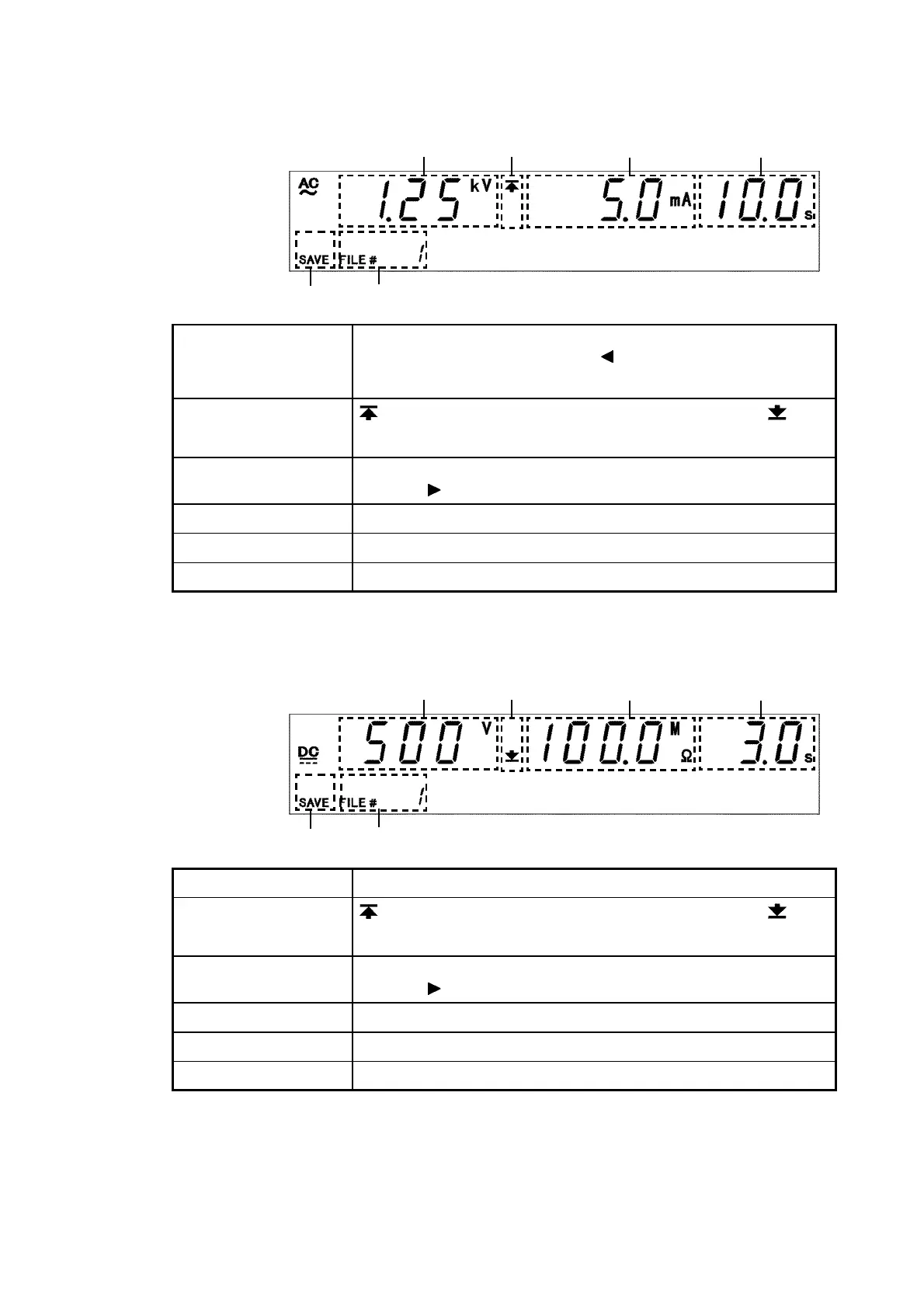

7.1 Saving Preset Values
______________________________________________________________________________________________
1 2 3 4
5 6
1 Comparative
voltage value and
Output voltage
range
The comparative-voltage value and output-voltage range for saved
data. Switch the display using the
key. When an outputvoltage
range is set, "
RENGE
"lightsup.
2 Upper limit value
icon and Lower limit
value icon
is displayed when the upper-limit value is shown, and is
displayed when the lower-limit value is shown.
3 Upper and Lower
limit values
The upper- or lower-limit value of saved data. Switch the display
using the
key.
4 Test time
The test time for the saved data.
5 SAVE
Indicates a saved screen.
6 File number
Indicates the file number for the saved data.
1 2 3
4
5 6
1 Test voltage value
The test voltage value for saved data.
2 Upper limit value
icon and Lower limit
value icon
is displayed when the upper-limit value is shown, and is
displayed when the lower-limit value is shown.
3 Upper and Lower
limit values
The upper- or lower-limit value of saved data. Switch the display
using the
key.
4 Test time
The test time for the saved data.
5 SAVE
Indicates a saved screen.
6 SAVE
Indicates the file number for the saved data.
Withstand-voltage mode
Insulation-resistance mode
