8.1 External I/O Terminal
______________________________________________________________________________________________

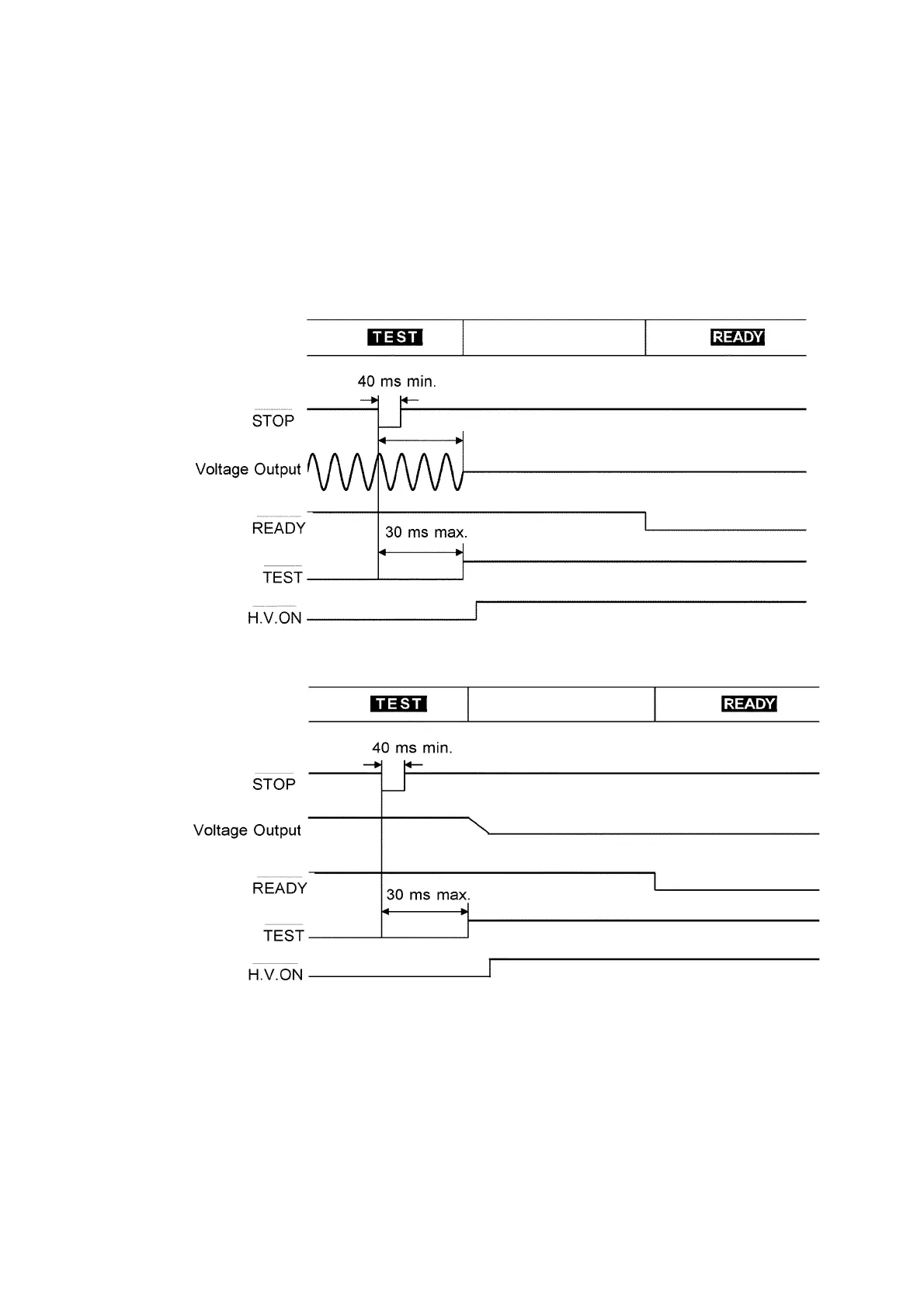

(3) Timing chart at forced termination
When the STOP key is pressed to forcibly terminate testing, the unit does not
change to either PASS or FAIL status, as test screening is not performed. In
this case, the signal becomes HIGH level. In the absence of status indicators
(READY/TEST/FAIL/PASS) -- in the SETTING state, when set values are
being saved or loaded, or when settings are being made for the optional
functions -- all signals become HIGH level.
Withstand voltage mode
Insulation resistance mode
