3.3 "SETTING " State
______________________________________________________________________________________________
Comparative voltage value: 2.00 kV
Upper limit value: 20 mA
Lower limit value: OFF
Test time: 60.0 s
Output voltage range: 2.5 kV

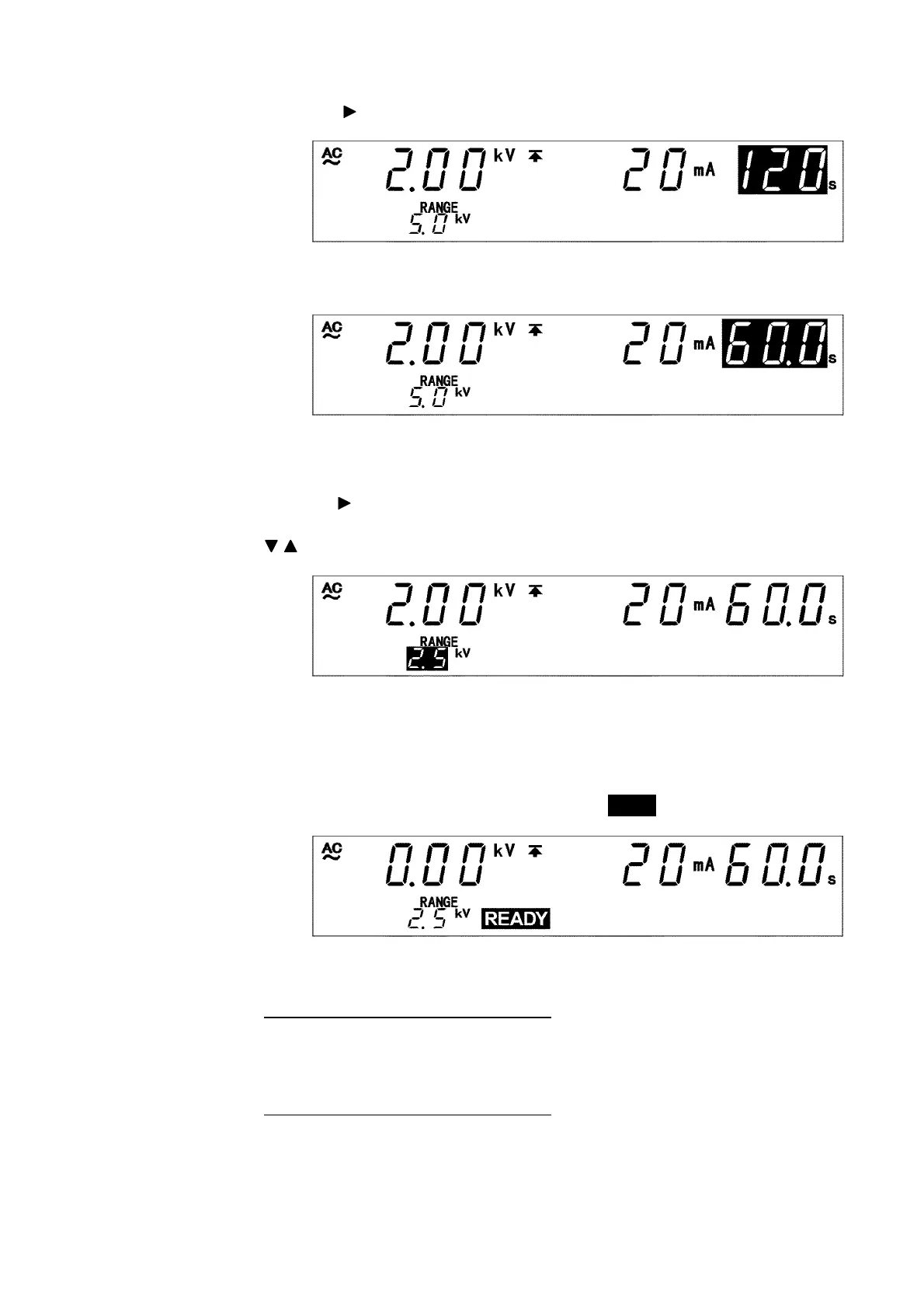

(5) Setting the test time
Using the key, move the flashing cursor to the test time.
In this example, change the test time from
120 s
to
60.0 s
.
(6) Setting an output voltage range
Press the key to move the flashing cursor to the output voltage range.
In this example, change the output voltage range from 5.0 kV to 2.5 kV using
/ keys.
(7) Changing to the READY state
To return to the READY state, press the STOP key, which will finalize the
test settings. In the READY state, the displayed comparative-voltage value is
replaced with a measured-voltage value, and
READY
lights up.
The new parameters following setting are shown below:
To Next Page
