151430-L8 Control Panel Installation
4-4
• If using the battery cable extenders provided (P/N 140643), mount the RBB or AB-55 cabinet no more
than 18" away from the main control panel cabinet. This will ensure that the battery cables reach the
battery terminals.

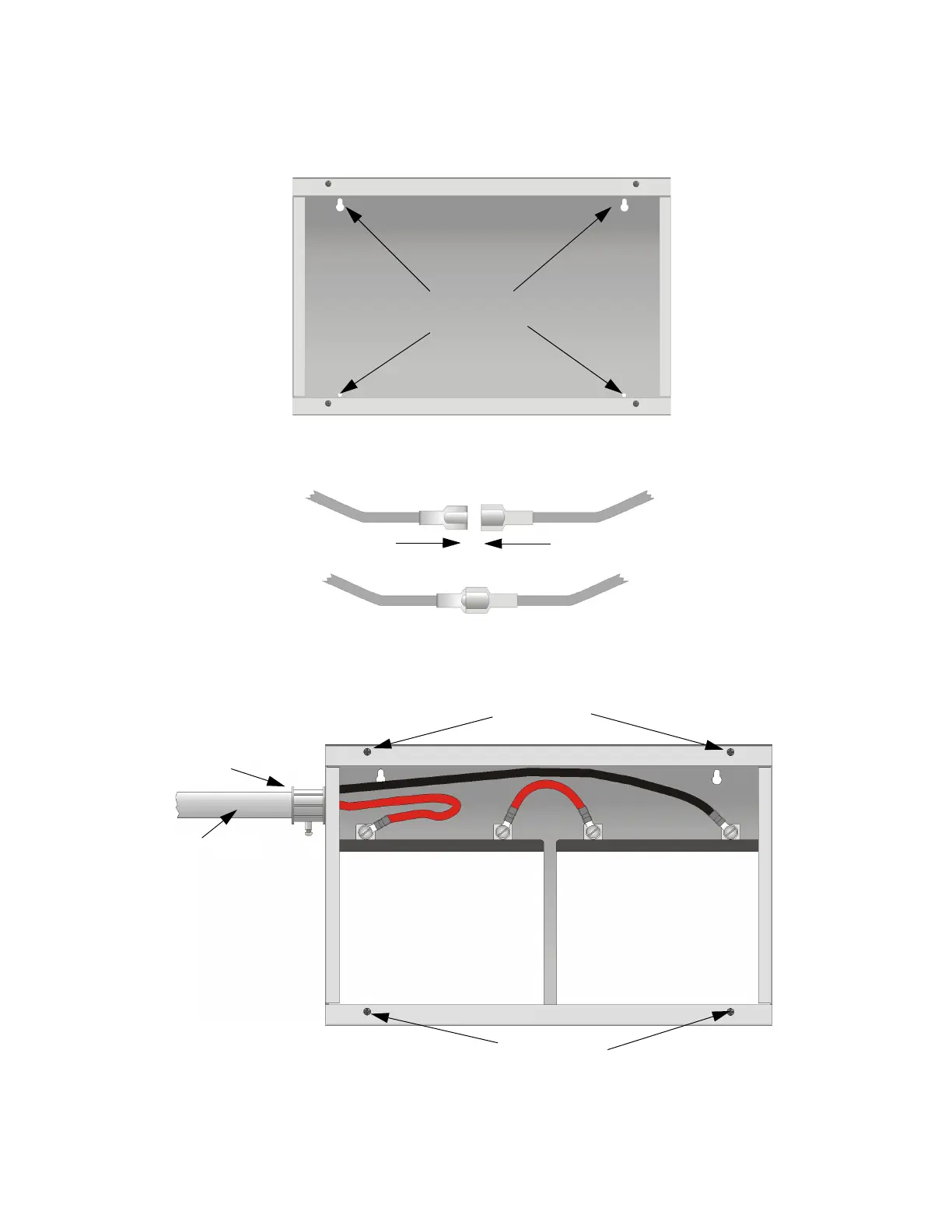

Figure 4-4 RBB or AB-55 Cabinet Mounting Holes
2. Connect the main control panel battery cables to the battery cable extenders as shown in Figure 4-5.
Figure 4-5 Splicing Control panel Battery Cable to RBB or AB-55 Battery Cable Extenders
3. Run extended battery cable from control panel cabinet through conduit to RBB or AB-55 cabinet. See Fig-
ure 4-6.
Figure 4-6 Battery Connections in the RBB or AB-55 Cabinet
Conduit
Conduit
Coupler
+
+
-
-
RBB / AB-55 Cabinet
Cover Screws
RBB / AB-55 Cabinet
Cover Screws
To Next Page
