Honeywell Performance Series User Manual

Performance Series Network Video Recorder User Guide
112
Enable: Select the Enable check box to enable the NAS storage function.
IP Address: Enter the IP address of the NAS Storage.
Mount Point: Enter the path of the NAS Storage.
Configuring NAS Manager
Go to Main Menu  SETTING  STORAGE  NAS MANAGER.

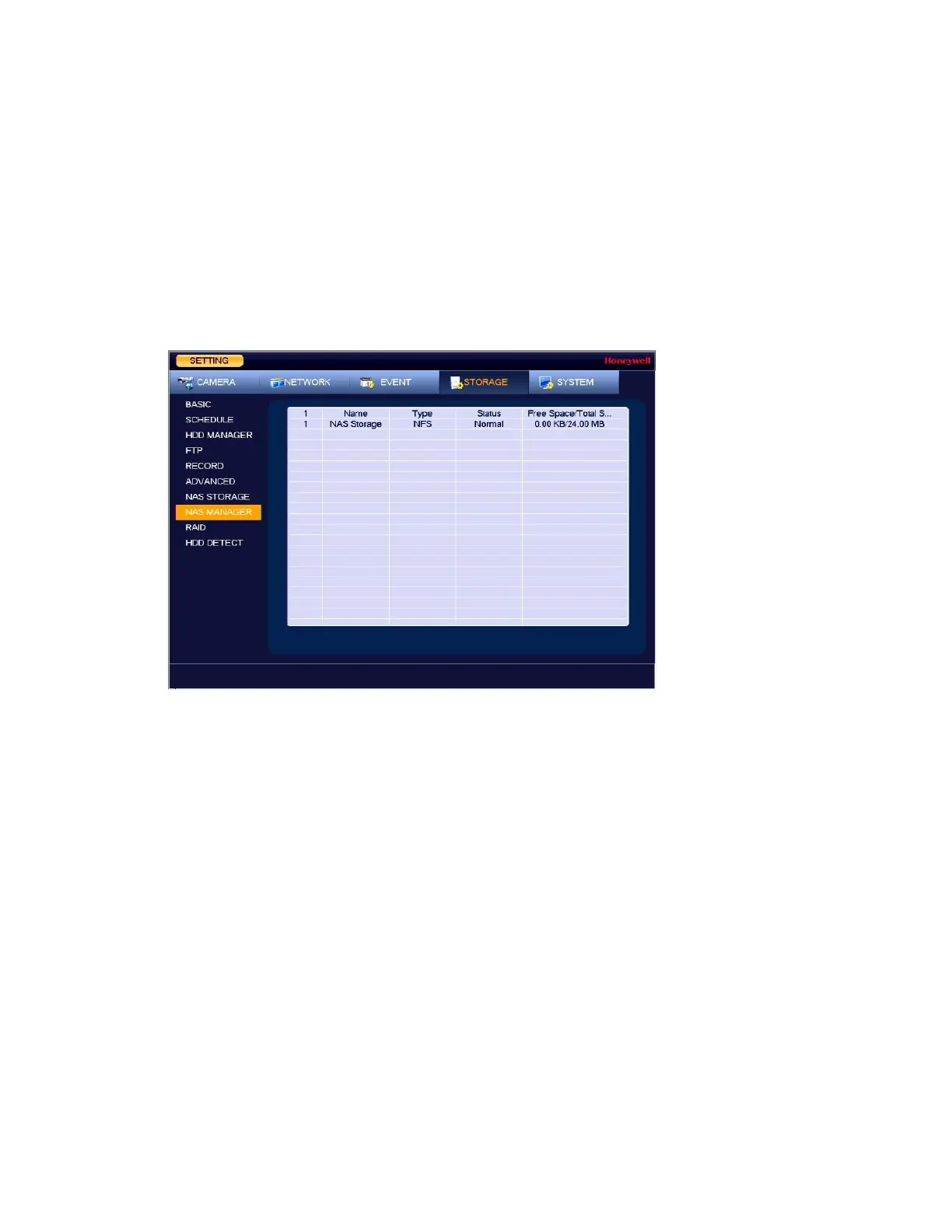

Figure 9-9 NAS Manager Configuration Tab
Name: The NAS name.
Type: The NAS type.
Status: The current operating status of the NAS.
Free Space/ Total Space: The amount of free space remaining on the NAS/ The total capacity
of the NAS.
Configuring Record Settings
Go to Main Menu  SETTING  STORAGE  RECORD.

Honeywell Performance Series Specifications

General

IR Range	Up to 30m (98ft)
Weatherproof Rating	IP66
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, 12 VDC
Image Sensor	1/2.8" CMOS
Vandal Resistance	IK10
Video Compression	H.265/H.264/MJPEG
Storage	MicroSD card slot (up to 256GB)
Network Connectivity	10/100 Mbps Ethernet
