Performance Series Network Video Recorder User Guide
38
Configuring the General Recording Settings
In the RECORD configuration interface, you can do the following:
• Select Auto/Schedule recording for the main and sub streams
• Select Manual recording for the main and sub streams
• Enable and disable the Snapshot function
To configure the general recording settings
1. Go to Main Menu  SETTING  STORAGE  RECORD, the following window is
displayed:

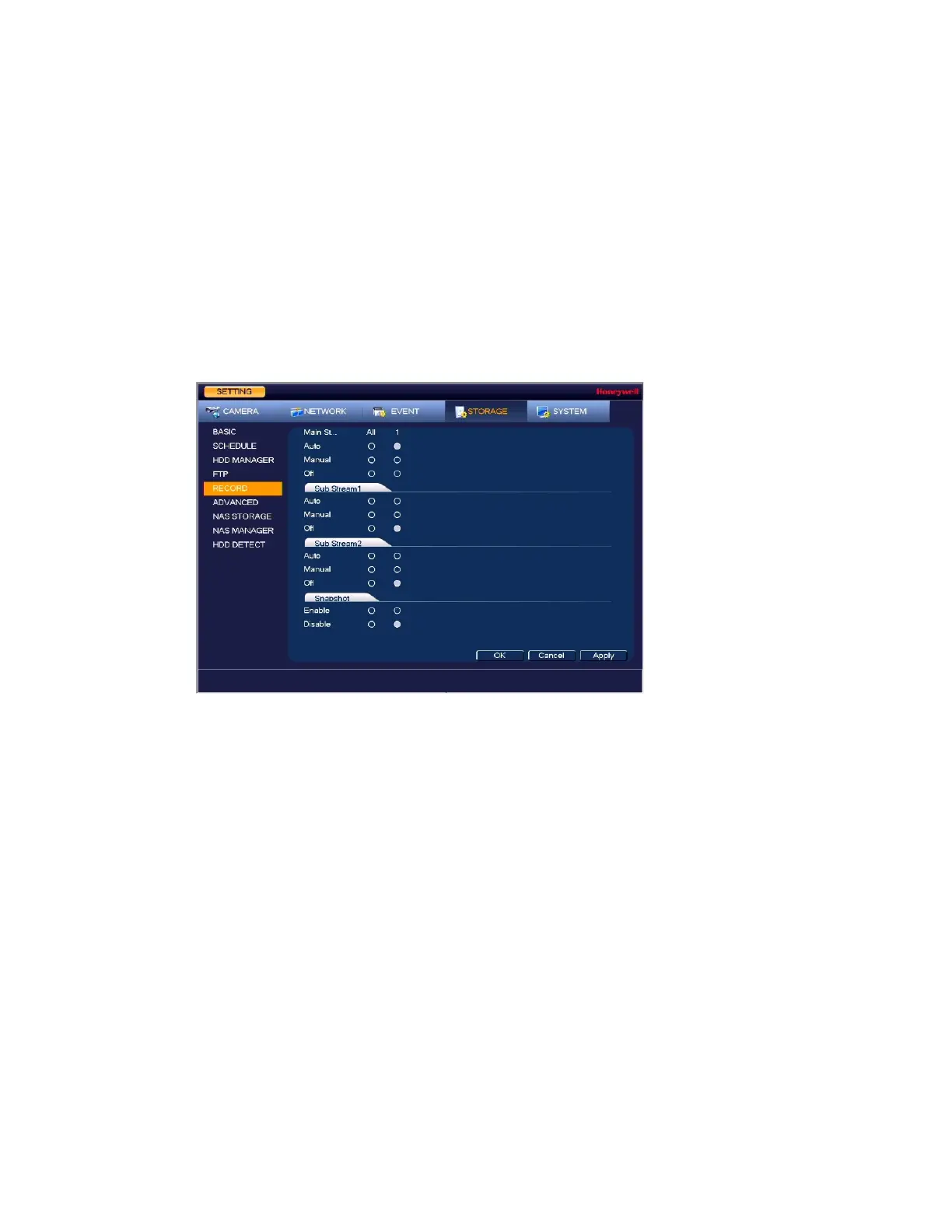

Figure 4-1 Storage Recording Settings
2. On the Record page, select the recording type (Auto, Manual, Stop) that you want to
enable on each channel, for both the main stream and sub stream.
3. Under Snapshot, enable snapshot recording on the desired channels.
4. Click Apply, and then click Save.
Configuring the Video Recording Schedule
To configure the video recording schedule
1. Go to Main Menu  SETTING  STORAGE  SCHEDULE Rec, the following window
is displayed:

Honeywell Performance Series Specifications

General

IR Range	Up to 30m (98ft)
Weatherproof Rating	IP66
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, 12 VDC
Image Sensor	1/2.8" CMOS
Vandal Resistance	IK10
Video Compression	H.265/H.264/MJPEG
Storage	MicroSD card slot (up to 256GB)
Network Connectivity	10/100 Mbps Ethernet
