Honeywell Performance Series User Manual

Performance Series Network Video Recorder User Guide
246

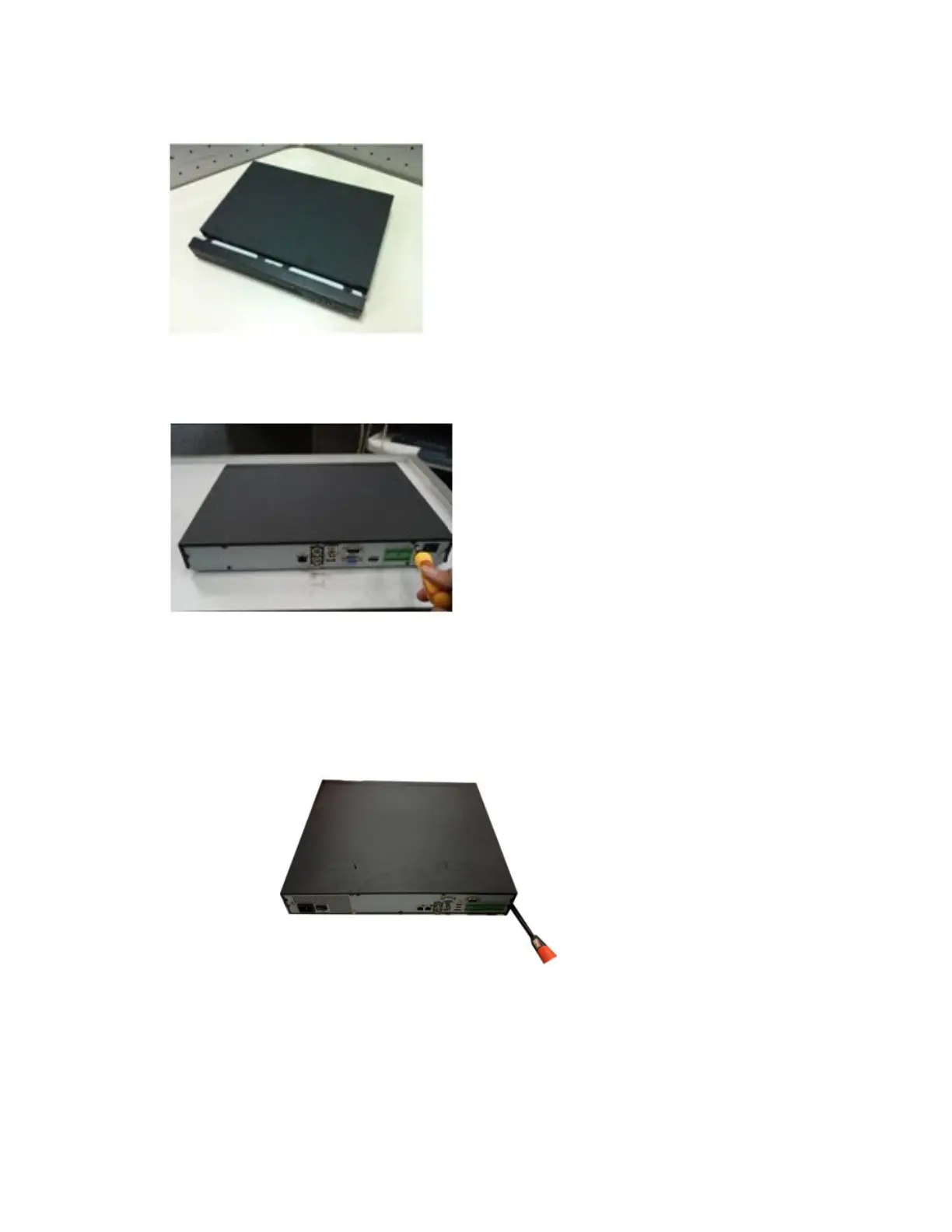

Figure 15-6 Replacing the NVR Cover
7. Secure the NVR cover in place by turning the screws in the rear and side panels.
Figure 15-7 Securing the NVR Cover
Installing a HDD on HEN162*4/HEN322*4/HEN642*4
1. Loosen the screws on the rear panel of the NVR, remove the front cover, and set it aside.
Figure 15-8 Removing the NVR Cover
2. Loosen four screws on the HDD.

Honeywell Performance Series Specifications

General

IR Range	Up to 30m (98ft)
Weatherproof Rating	IP66
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, 12 VDC
Image Sensor	1/2.8" CMOS
Vandal Resistance	IK10
Video Compression	H.265/H.264/MJPEG
Storage	MicroSD card slot (up to 256GB)
Network Connectivity	10/100 Mbps Ethernet
