Performance Series Network Video Recorder User Guide
32

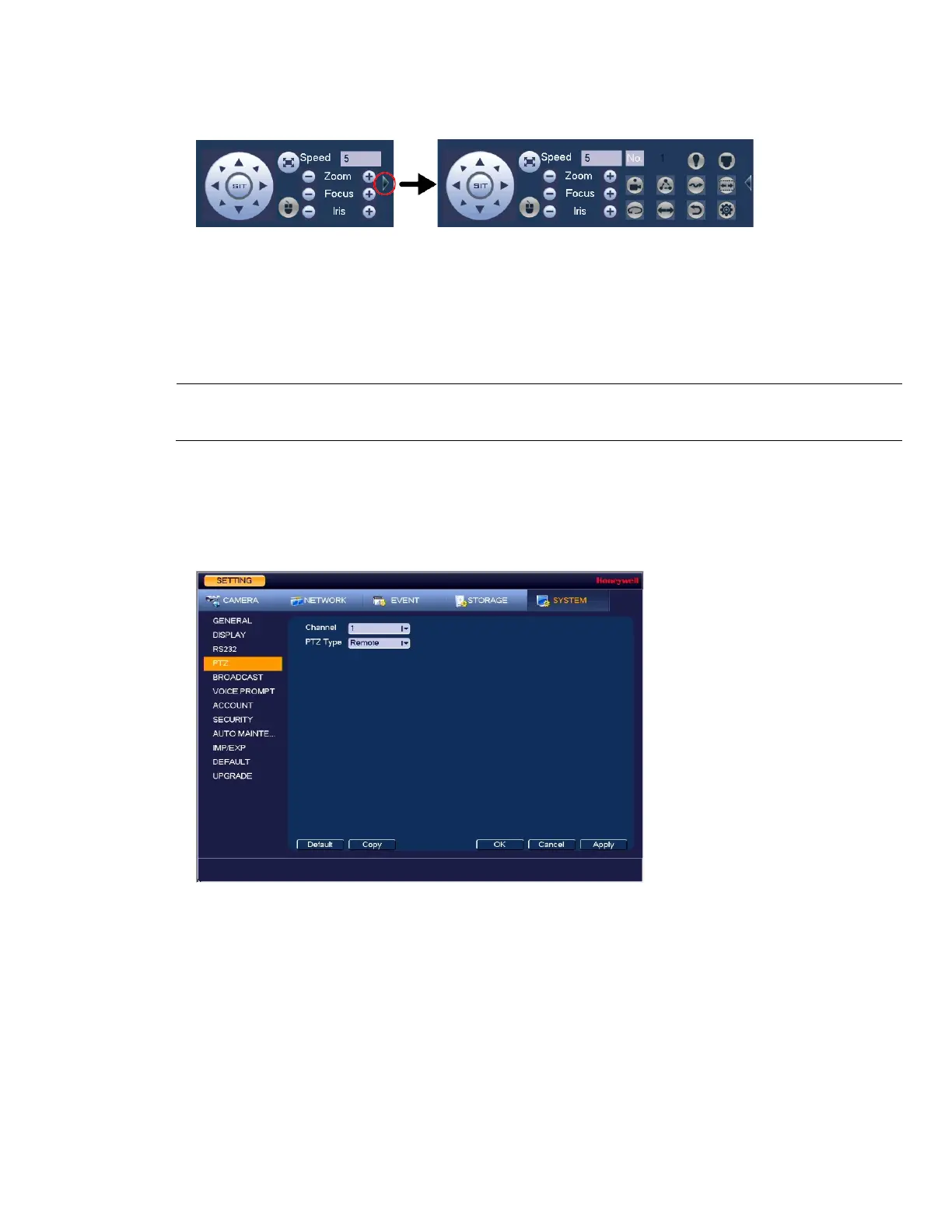

Figure 3-8 Expanded PTZ Control Panel
Configuring PTZ Connection Settings
Before you can control a PTZ camera with the NVR, you must configure the PTZ connection
settings.
Note
This function is only available for
HEN081*4/HEN162*4/HEN163*4/HEN161*4/HEN322*4/
HEN323*4/HEN321*4/HEN642*4/HEN643*4.
To configure the PTZ connection settings
1. Go to Main Menu  SETTING  SYSTEM PTZ, the following window is displayed:
Figure 3-9 System Setting – PTZ
2. Configure the following settings:
Channel: Select the channel (camera) for which you want to configure PTZ settings.
PTZ Type: Select Remote for the PTZ type. A remotely connected IP camera is connected
through the network.
3. Click Apply, and then click OK to save your settings and exit.
Configuring PTZ Functions

Honeywell Performance Series Specifications

General

IR Range	Up to 30m (98ft)
Weatherproof Rating	IP66
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, 12 VDC
Image Sensor	1/2.8" CMOS
Vandal Resistance	IK10
Video Compression	H.265/H.264/MJPEG
Storage	MicroSD card slot (up to 256GB)
Network Connectivity	10/100 Mbps Ethernet
