Honeywell Performance Series User Manual

Viewing Information
139

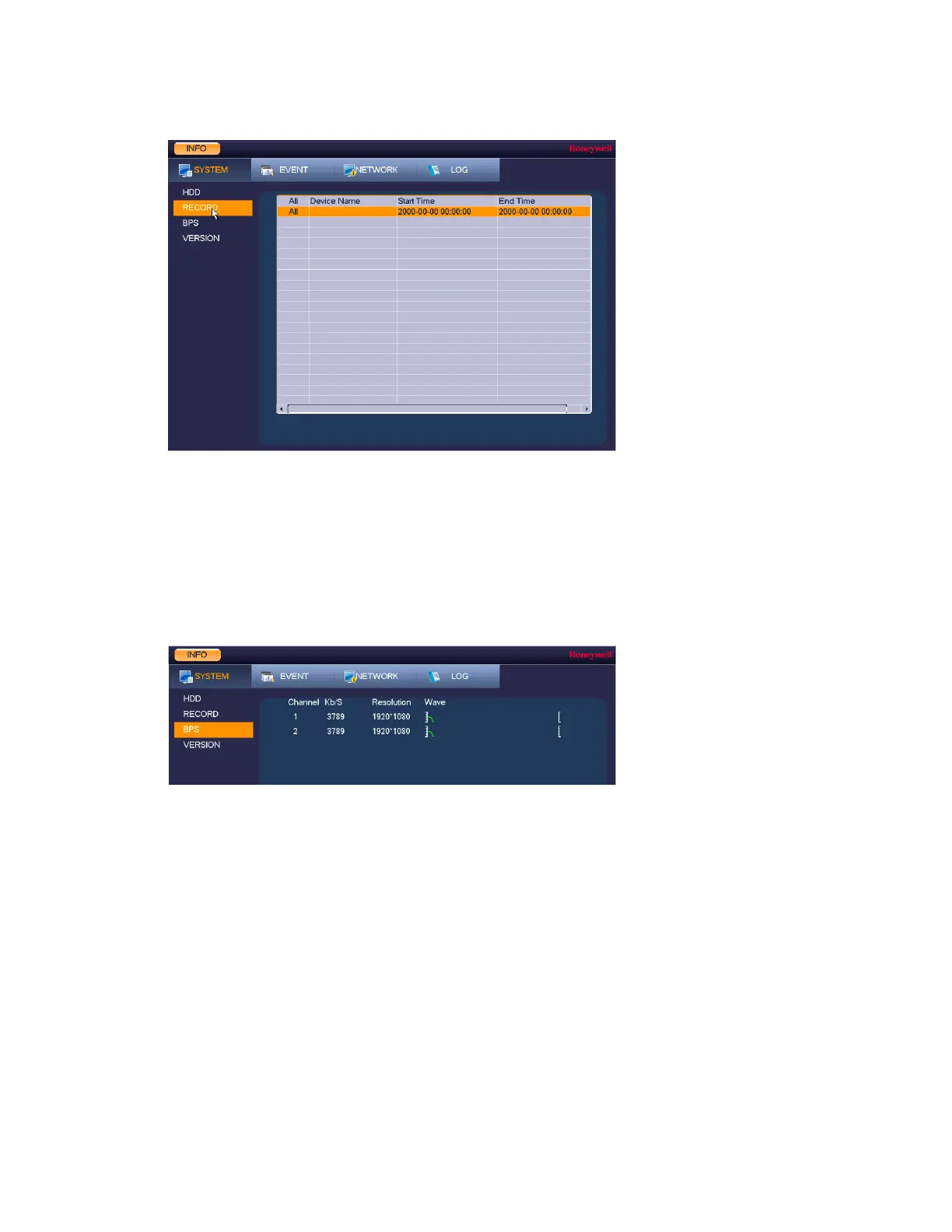

Figure 11-3 Recording Information Window
On the Record Info page, you can view the device name as well as the start and end times for
recorded video.
Viewing Data Stream Information
Go to Main Menu  INFO  SYSTEM  BPS.
Figure 11-4 BPS Information Window
On the BPS page, you can view the current video data stream rates and resolutions for each
channel.
Viewing Version Information
Go to Main Menu  INFO  SYSTEM  VERSION.

Honeywell Performance Series Specifications

General

IR Range	Up to 30m (98ft)
Weatherproof Rating	IP66
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, 12 VDC
Image Sensor	1/2.8" CMOS
Vandal Resistance	IK10
Video Compression	H.265/H.264/MJPEG
Storage	MicroSD card slot (up to 256GB)
Network Connectivity	10/100 Mbps Ethernet
