Honeywell Performance Series User Manual

Performance Series Network Video Recorder User Guide
84

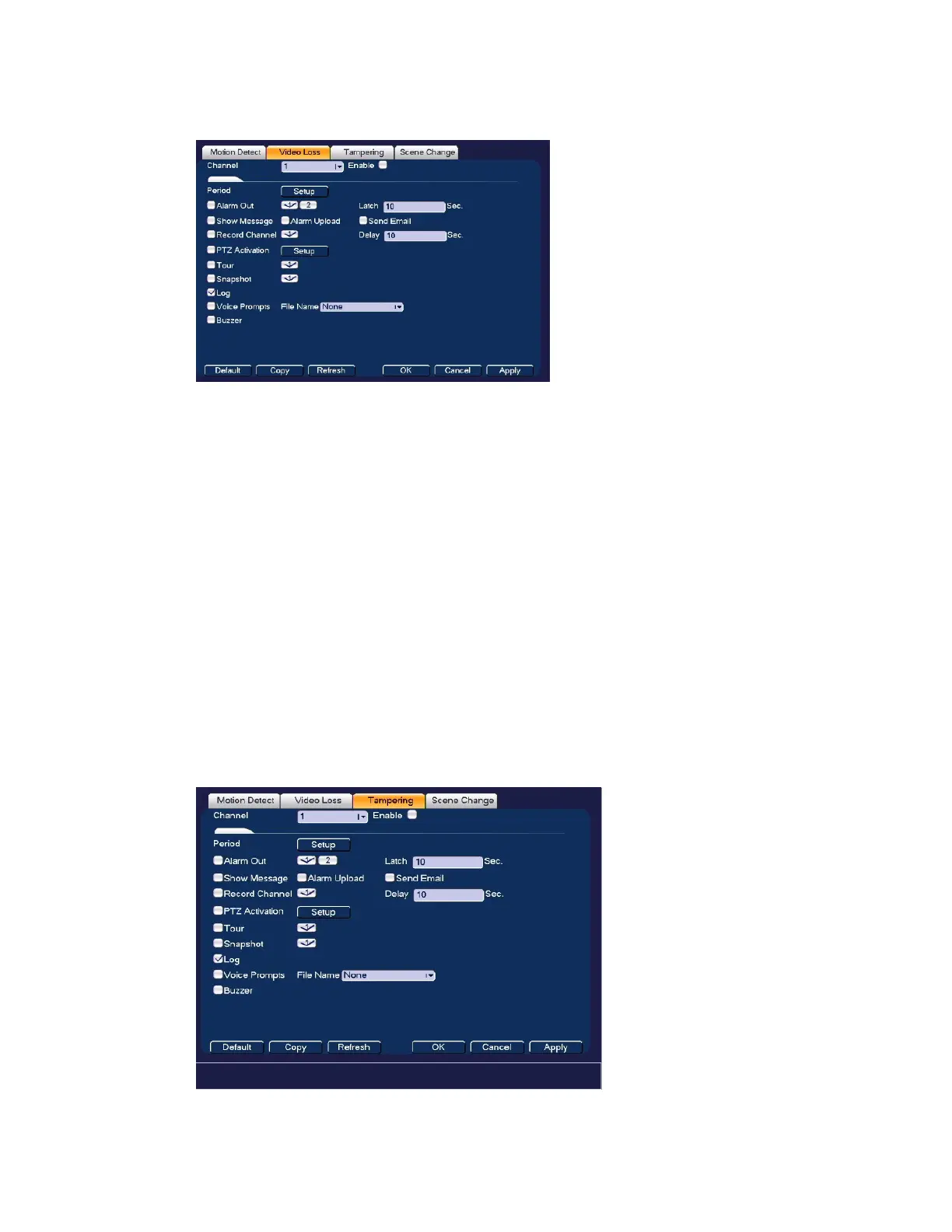

Figure 8-6 Video Loss Configuration Tab
2. On the Video Loss tab, in the Channel box, select the channel (camera) for which you
want to configure video loss detection settings.
3. Select the Enable check box to enable video loss detection for the selected channel.
4. To set the periods when video loss detection is active, next to Period, click Set, and then
follow the steps listed in To set up motion detection periods on page 81.
5. To set the actions that you want the system to initiate when a video loss event occurs,
follow the steps listed in To set up motion detection event actions on page 82.
6. Click Apply to save your settings.
7. To copy the settings to additional channels, click Copy, select the channels to which you
want to copy the settings, and then click OK.
Configuring Video Tampering Settings
1. Go to Main Menu  SETTING  EVENT  VIDEO DETECTION  Tampering.
Figure 8-7 Video Tampering Configuration Tab

Honeywell Performance Series Specifications

General

IR Range	Up to 30m (98ft)
Weatherproof Rating	IP66
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, 12 VDC
Image Sensor	1/2.8" CMOS
Vandal Resistance	IK10
Video Compression	H.265/H.264/MJPEG
Storage	MicroSD card slot (up to 256GB)
Network Connectivity	10/100 Mbps Ethernet
