Performance Series Network Video Recorder User Guide
70
Configuring UPnP Settings
The Universal Plug and Play (UPnP) protocol is used to map the relationship between the LAN
and the WAN.
1. Go to Main Menu ïƒ Setting ïƒ NETWORK ïƒ UPnP, the following window is displayed:

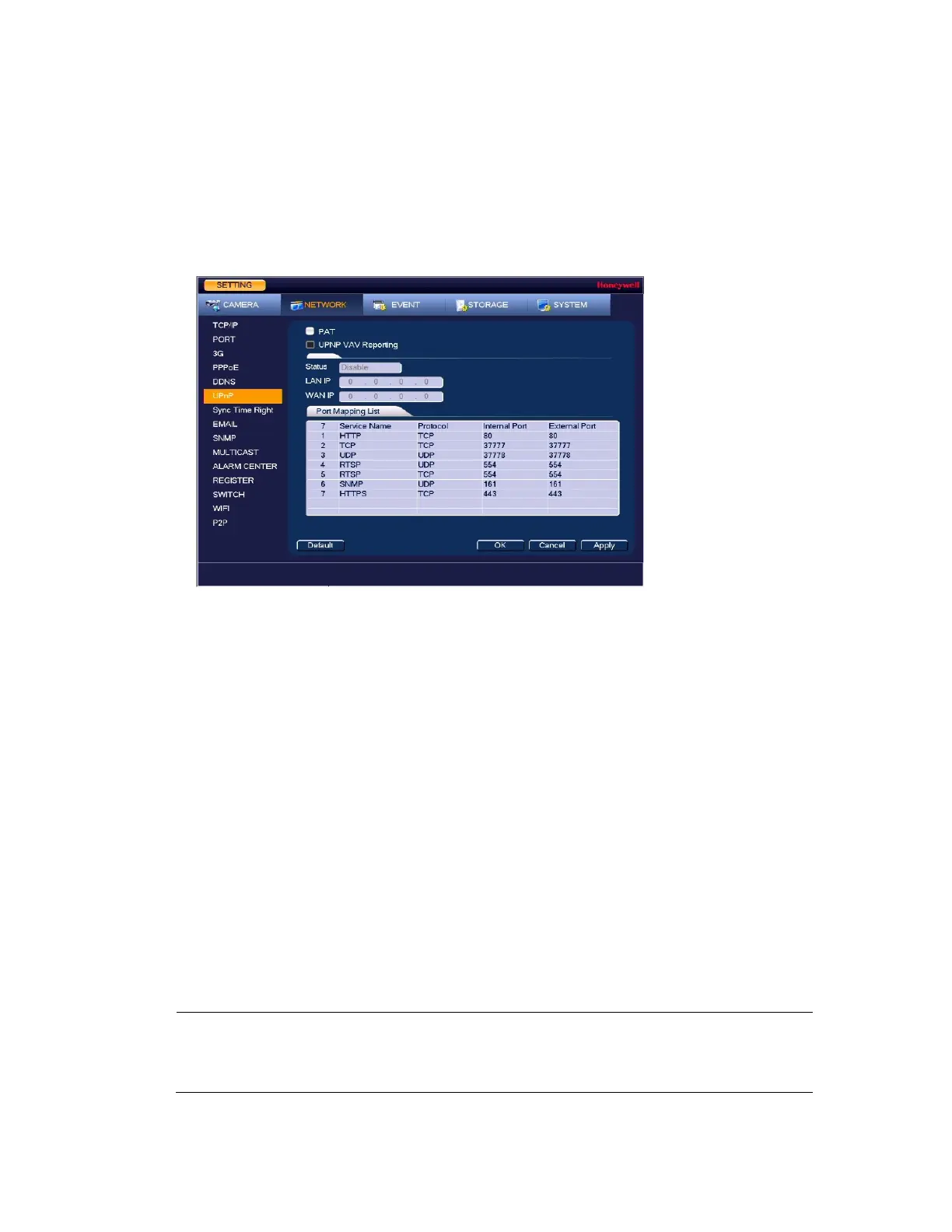

Figure 7-9 Network UPnP Settings Window
2. On the UPnP page, configure the following settings:
PAT: Click to enable or disable PAT.
UPNP VAV Reporting: Click to enable UPnP VAV reporting. When you enable this feature
you will be asked to enter a password.
Status: Displays the status of the UPnP connection.
LAN IP: Enter the NVR’s IP address from the TCP/IP page.
WAN IP: Enter the router IP address.
3. If you want, you can edit a mapping relationship from the Port Mapping List. Double-click
the mapping relationship that you want to edit, and then, in the Port Info dialog box, edit
the Service Name, Protocol, Internal Port, and/or External Port details, and then click
OK. Avoid using ports 1 to 255 or 256 to 1023.
4. Click Apply to save your settings.
5. If you want to save your settings and exit the SETTING menu, click OK.
Configuring Sync Time Right Settings
Note
This function is only available for
HEN081*4/HEN162*4/HEN163*4/HEN161*4/HEN322*4/HEN323*
4/HEN321*4/HEN642*4/HEN643*4.
