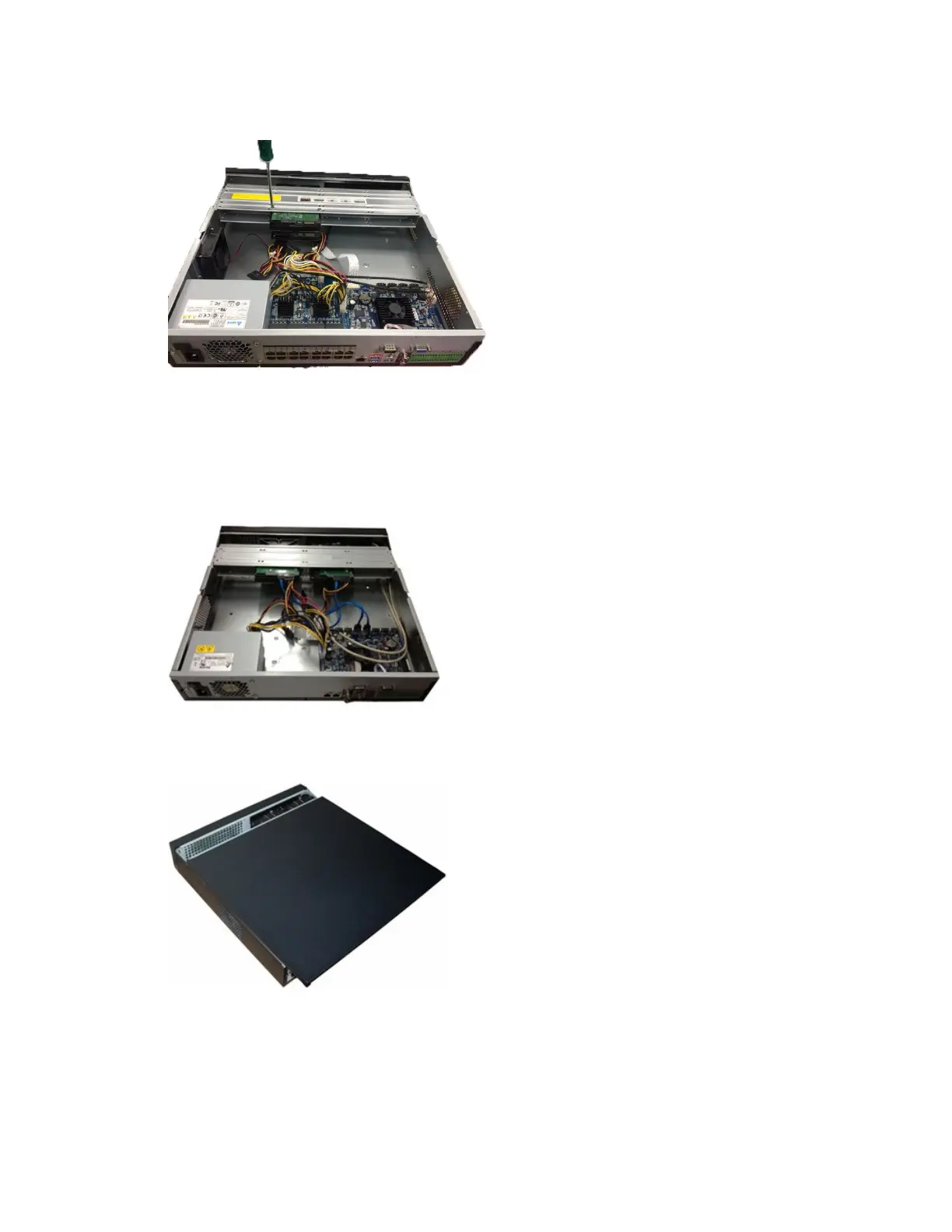

Figure 15-15 Placing the HDD
4. Fasten the screws to firmly attach the HDD to the NVR housing.
5. Connect the HDD data cable to the main board and the HDD port respectively.
6. Loosen the power cable from the chassis and connect another end of the power cable to
the HDD port.
Figure 15-16 Connecting the HDD and the Power Cable
7. Replace the NVR cover.
Figure 15-17 Replacing the NVR Cover
8. Secure the NVR cover in place by fixing the screws in the rear panel.
Installing an Additional HDD

Honeywell Performance Series Specifications

General

IR Range	Up to 30m (98ft)
Weatherproof Rating	IP66
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, 12 VDC
Image Sensor	1/2.8" CMOS
Vandal Resistance	IK10
Video Compression	H.265/H.264/MJPEG
Storage	MicroSD card slot (up to 256GB)
Network Connectivity	10/100 Mbps Ethernet
