Honeywell Performance Series User Manual

Performance Series Network Video Recorder User Guide
4
HEN04103L/HEN08103L

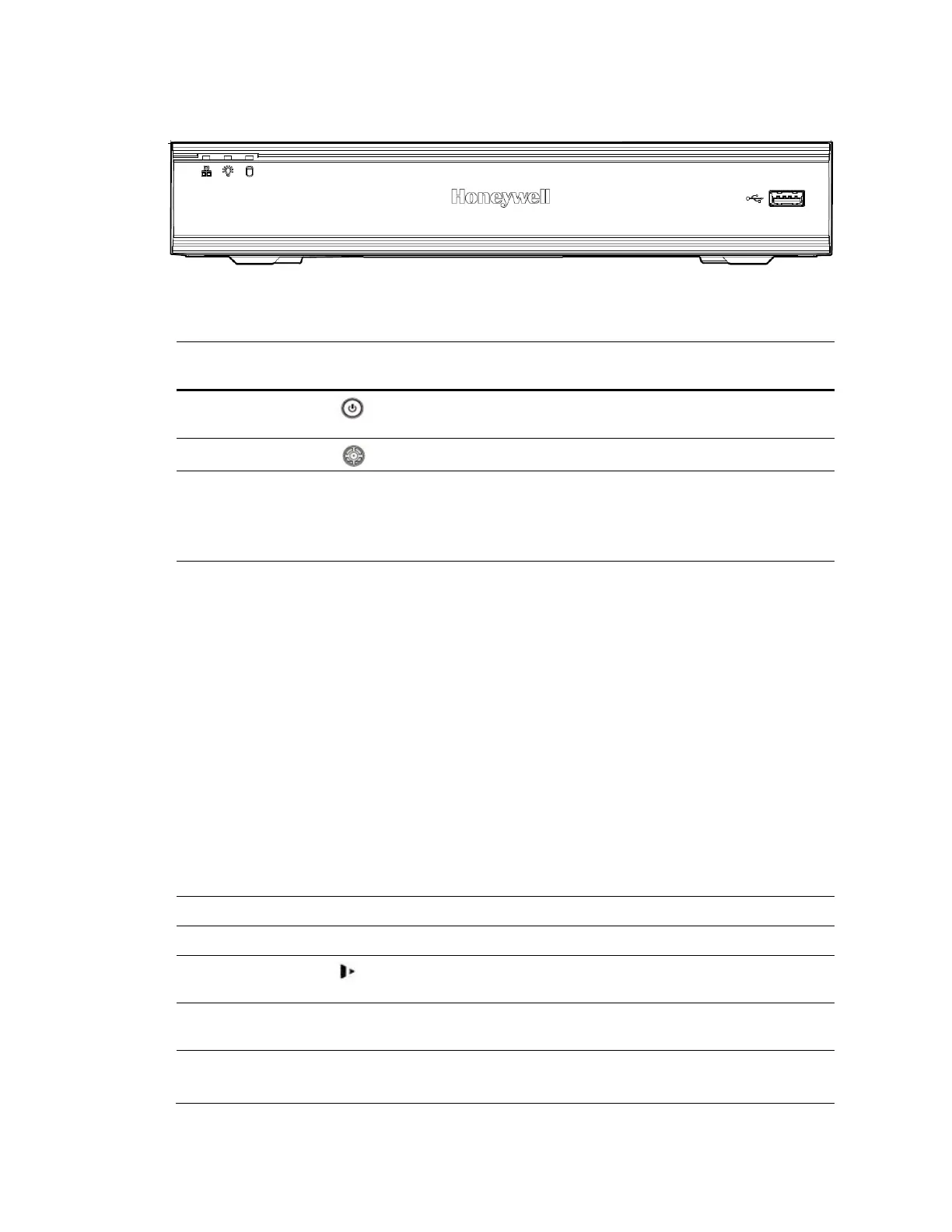

Table 1-1 NVR Front Panel Components
Component
Name
Icon Function
Power Button
Power button. Press this button for three
seconds to boot up or shut down the NVR.
IR Receiver Receives the signal from the remote control.
Shift
(
⇑
) SHIFT
• When the cursor is in a textbox, click this
button to switch between numbers and
letters (lower case/upper case).
• Enable/disable a tour.
Assistant
Fn
• Single window monitor mode: Click this
button to display the Assistant function; to
start PTZ control (not supported); and to
configure the image color.
• Backspace function: When entering letters
or numbers, press and hold for 1.5 seconds
to delete the last-entered character.
• Motion detection: Use in conjunction with
the direction keys.
• Text mode: When entering characters, click
to switch between numbers and letters
(uppercase/lowercase).
• HDD management: Click to switch the
HDD recording information and other
information. (Menu prompt.)
• Other special functions.
Play Previous

I
In playback mode, play the previous video.
Play Next

I
In playback mode, play the next video.
Slow Play
Click to adjust the playback speed. Various
slow playback speeds are available.
Fast Play

Click to adjust the playback speed. Various fast
playback speeds are available.
Reverse/Pause
II
• Normal playback: Click to reverse playback.
• Reverse playback: Click to pause playback.
