Honeywell Performance Series User Manual

Performance Series Network Video Recorder User Guide
64

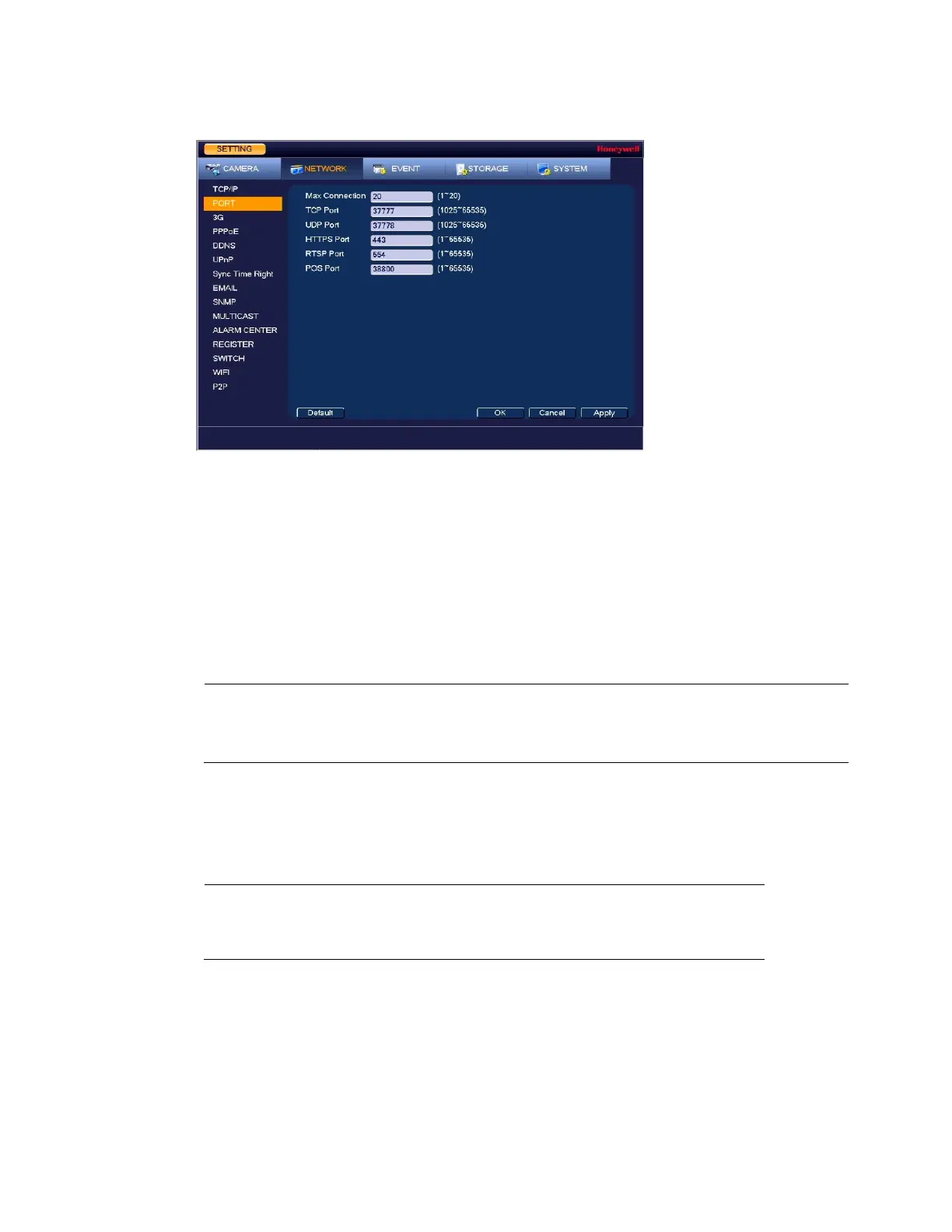

Figure 7-3 Network Port Settings Window
2. On the Connection page, you can configure the following settings:
Max Connection: Select a value between 1 and 128. The default setting is 20.
TCP Port: Select a value between 1025 and 65535. The default setting is 37777.
UDP Port: Select a value between 1025 and 65535. The default setting is 37778.
HTTPS Port: Select a value between 1 and 65535. The default setting is 443.
RTSP Port: Select a value between 1 and 65535. The default setting is 554.
POS Port: Select a value between 1 and 65535. The default setting is 38800.
Note
The POS Port is only available for
HEN081*4/HEN162*4/HEN163*4/HEN161*4/HEN322*4/
HEN323*4/HEN321*4/HEN642*4/HEN643*4.
3. Click Apply to save your settings.
4. If you want to save your settings and exit the SETTING menu, click OK.
Note
You must restart the NVR to apply any changes to the NVR’s
port settings. Ensure that the port settings do not conflict with
each other.

Honeywell Performance Series Specifications

General

IR Range	Up to 30m (98ft)
Weatherproof Rating	IP66
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, 12 VDC
Image Sensor	1/2.8" CMOS
Vandal Resistance	IK10
Video Compression	H.265/H.264/MJPEG
Storage	MicroSD card slot (up to 256GB)
Network Connectivity	10/100 Mbps Ethernet
