Performance Series Network Video Recorder User Guide
78

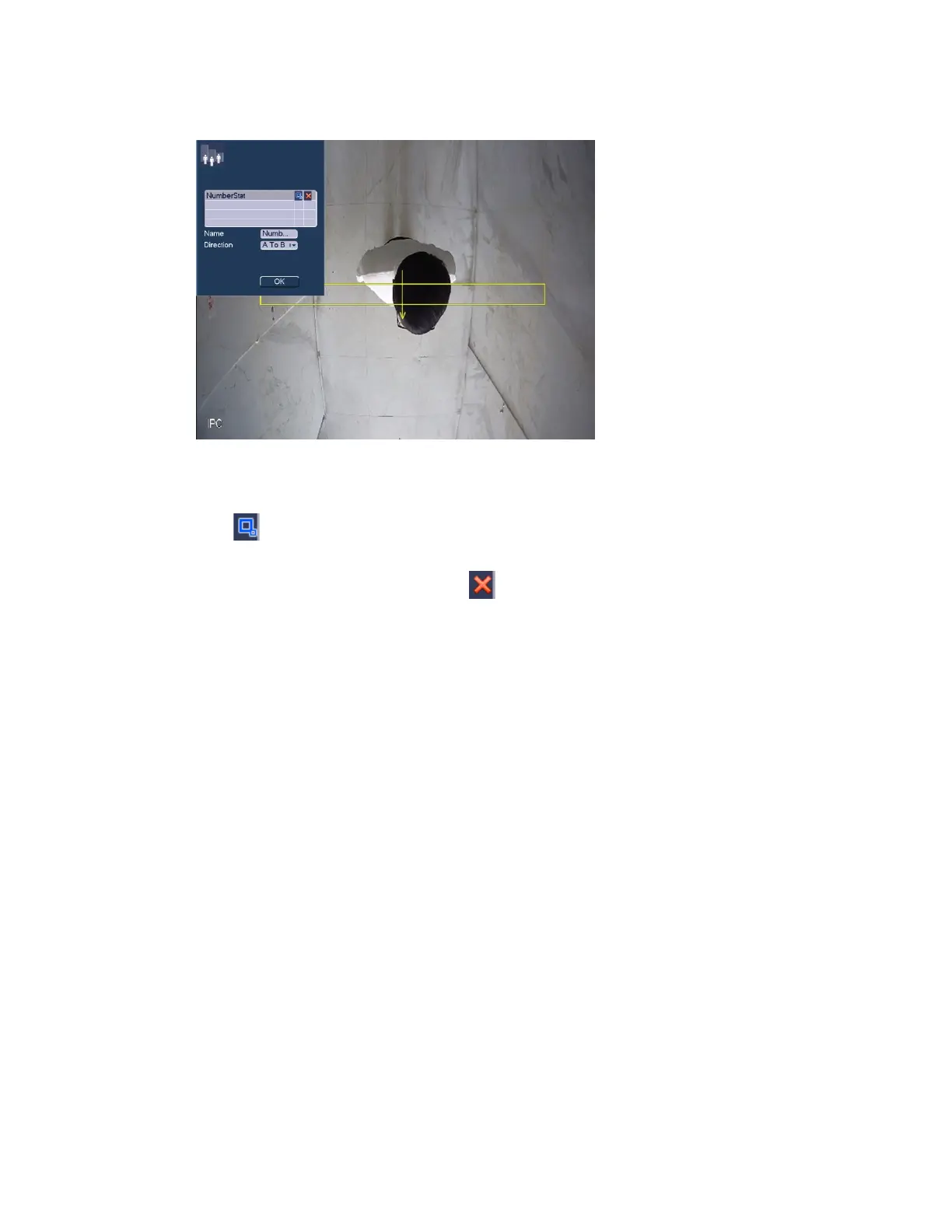

Figure 8-23 People Counting Rule
In the Name field, enter the name of rule. In the Direction field, select the direction of
people counting. You can select A->B or B->A, the arrow direction always means the
entrance direction.
Click to set up the target size. You can move or resize the area using
your mouse. To
move the area, drag one of the sides. To resize the area, drag one of the
corner handles.
To clear the people counting area, click .
4. Enable OSD Overlay by checking the box. Click Clear to clear the overlay, if necessary.
5. Enter the number of people that are allowed to enter and exit in the Enter No. and Exit
No. fields. Enter the number of people that are allowed to remain in the scene in the
Stranded No. field.
6. To set the periods when people counting is active, next to Period, click Set, and then
follow the steps listed in To set up motion detection periods on page 85.
7. Select the action(s) that you want the system to initiate when a people counting event
occurs:
Alarm Out: Select the check box to activate the selected alarm output(s) (1 or 2). In the
Latch box, specify the amount of time (0–300 s) to delay the alarm output signal after a
people counting event is triggered.
Send Email: Select the check box to enable the system to send an email notification. If
the Snapshot function is enabled, an image can be attached to the email. To set up Email,
see Configuring Email Settings on page 72.
Record Channel: Select the channel(s) that you want to record when the alarm is
triggered. In the Delay box, specify the amount of time (10–300 s) to delay recording after
a people counting event is triggered.
