Set up the logic analyzer

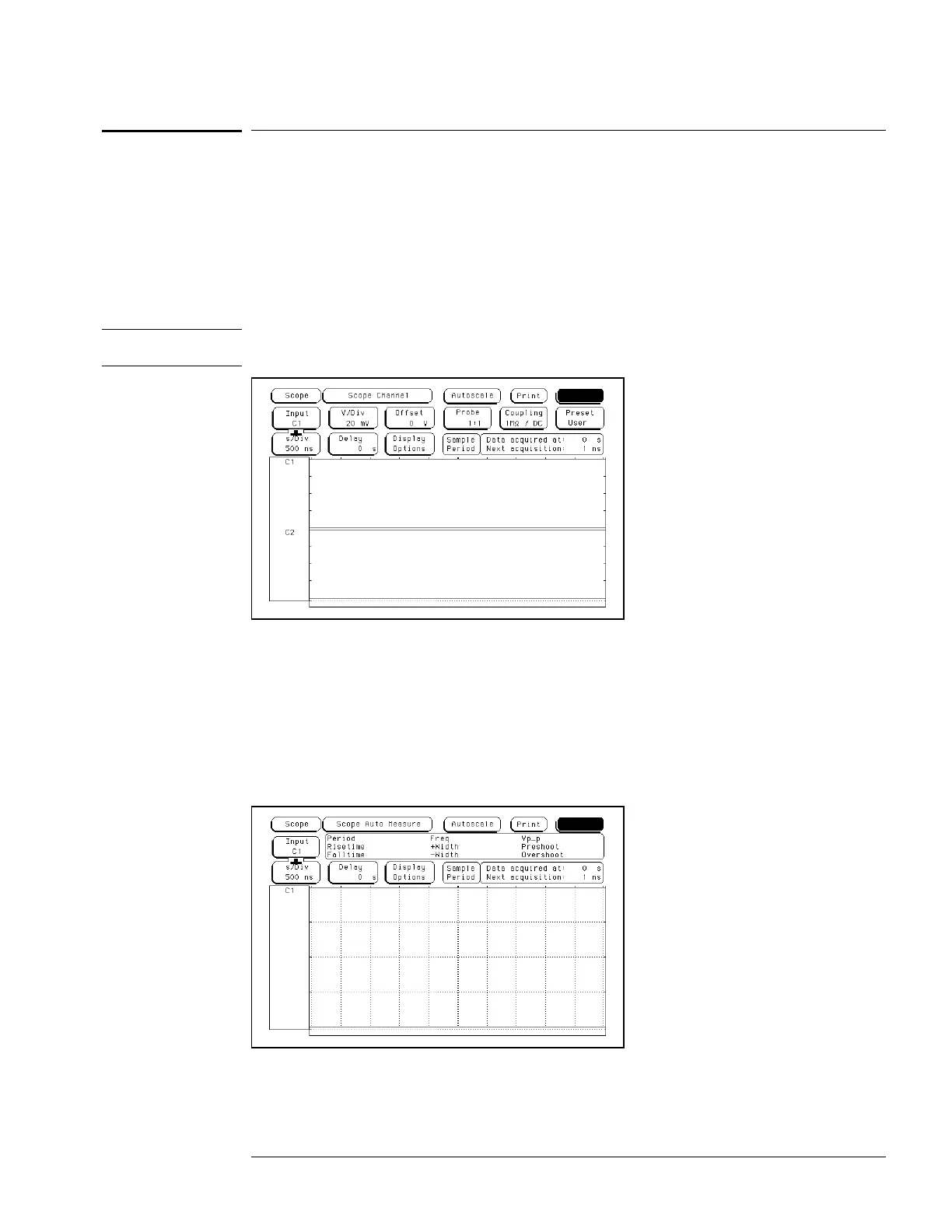

11 Set up the Channel menu.
aa Press the Config key. In the pop up menu, select Scope Channel.
bb Select the Input field, then select C1.
cc Move the cursor to the Probe field, then use the RPG knob to dial in 1:1.
dd Select the Coupling field, then select 1MΩ / DC.
ee Move the cursor to the s/Div field, then use the RPG knob to dial in 500 ns.
CAUTION
Set the Channel Coupling field to 1MΩ / DC or damage to the equipment will result.
22
Set up the Display menu.
aa Press the Display key.
bb Select the Mode field, then select Average.
cc Move the cursor to the Average # field. Type 8 on the front-panel keyboard, then
press Done.
dd Select the Grid field and set it to On.
ee In the Waveform selection menu, delete channel 2. If channel 1 is not inserted, insert
channel 1.
33
Set up the Trigger menu.
aa Press the Trigger key.
bb Select the Mode/Arm field, then select Immediate.
To test the voltage measurement accuracy (oscilloscope)
3–73
