33 Set up the oscilloscope.
Oscilloscope Setup
Time Base Display Delta V Delta T
Time/Div: 1.00 ns/div avg V markers on T markers on
# of avg: 16 marker 1 position: Chan 1 start on: Neg Edge 1
screen: dual marker 2 position: Chan 1 stop on: Neg Edge 2
Channel
Channel 1 Channel 2
Display on on
Probe Atten 20.00 20.00
Offset − 1.3 V − 1.3 V
Volts/Div 400 mV 400 mV
Set up the logic analyzer

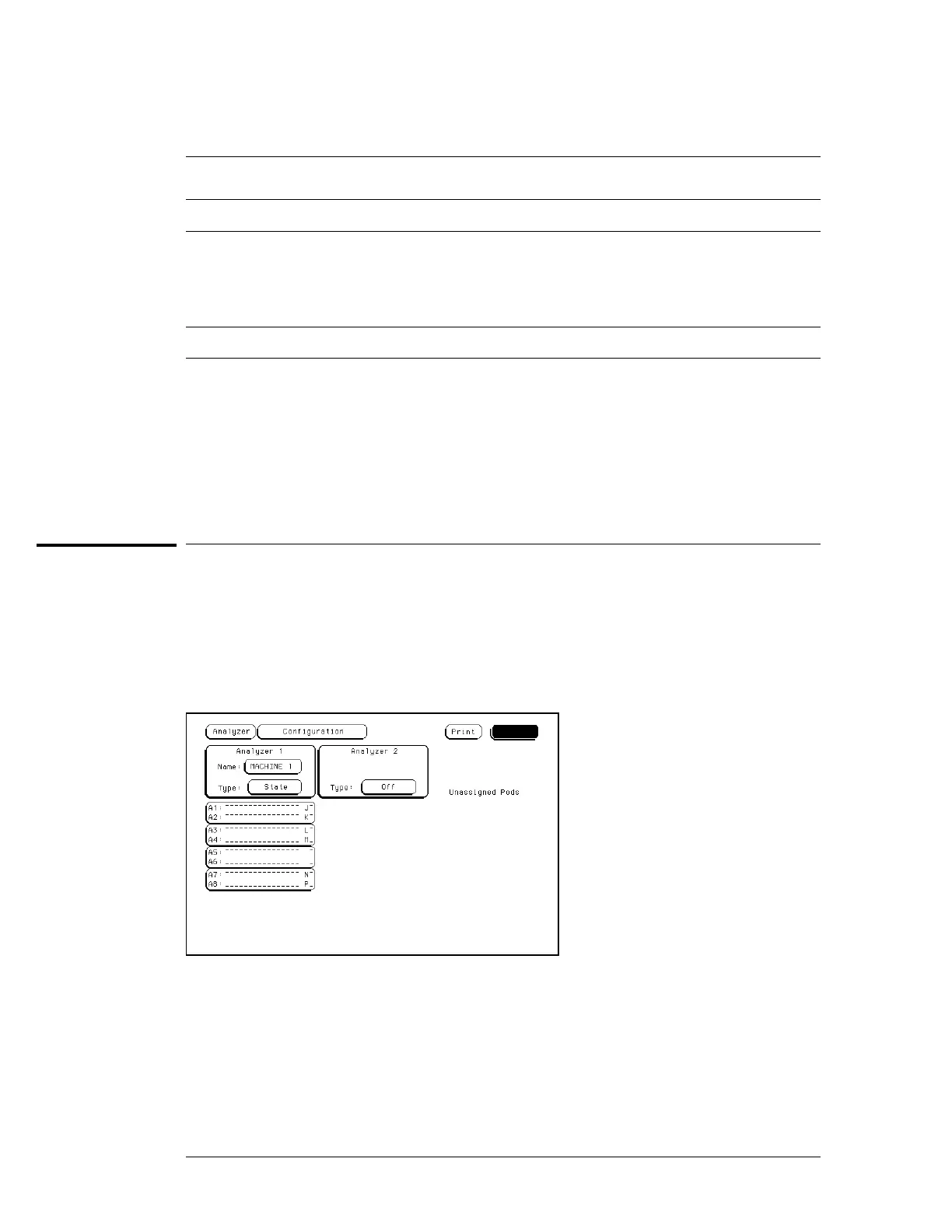

11 Set up the Configuration menu.
aa Press the Config key.
bb Assign all pods to Machine 1. To assign all pods, select the pod fields, then select
Machine 1.
cc Select the Type field in the Analyzer 1 box, then select State.
To test the single-clock, multiple-edge, state acquisition (logic analyzer)
3–48
