To test the auxiliary power

The +5 V auxiliary power is protected by a current overload protection device. If the current

on pins 1 and 39 exceed 0.33 amps, the circuit will open. When the short is removed, the

circuit will reset in approximately 1 minute. There should be +5 V after the 1 minute reset

time.

Equipment Required

Equipment Critical Specifications Recommended

Model/Part

Digital Multimeter 0.1 mV resolution, better

than 0.005% accuracy

HP 3478A

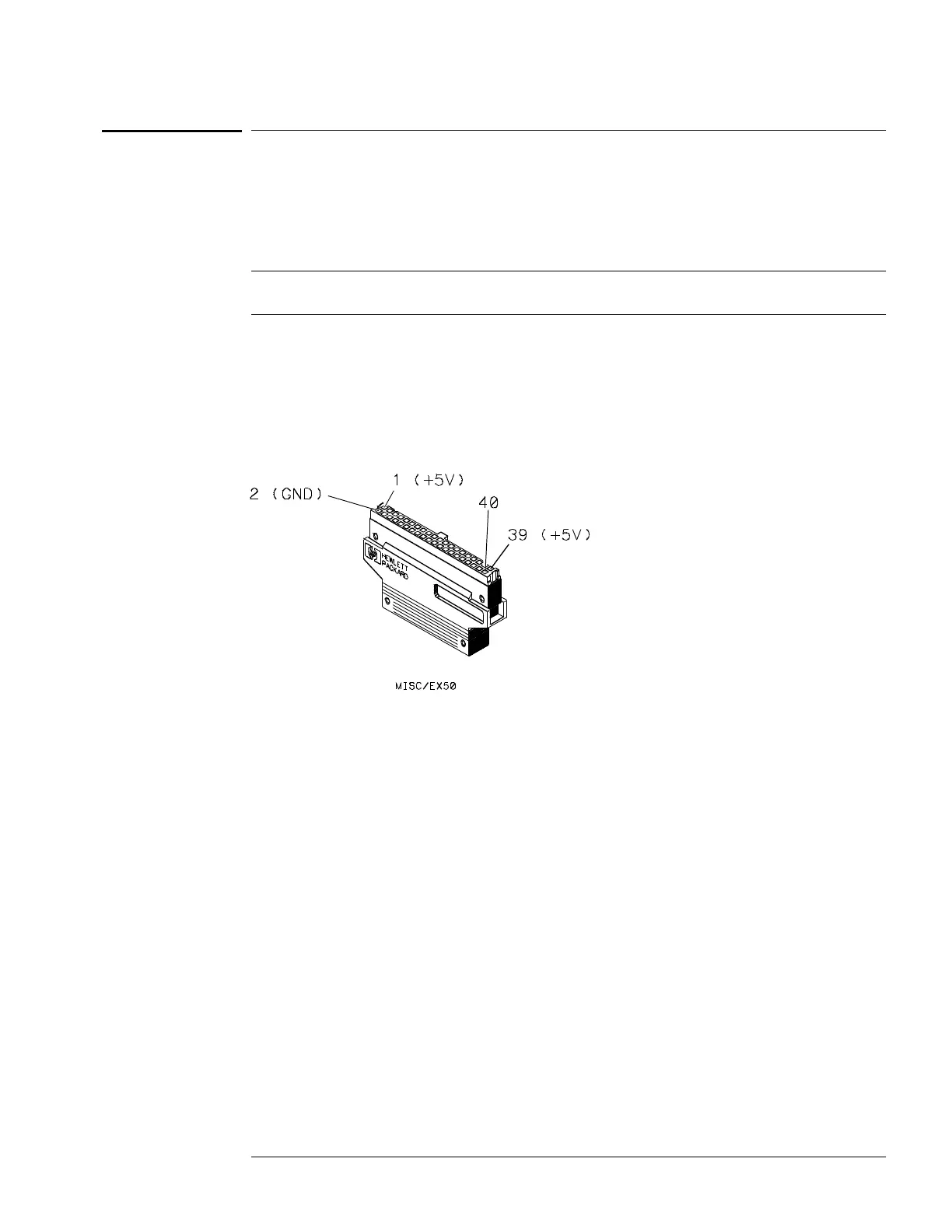

• Using the multimeter, verify the +5 V on pins 1 and 39 of the probe cables.

Troubleshooting

To test the auxiliary power

5–33
