HP 1660 Series User Manual

33 Set up the Trigger menu.
aa Press the Trigger key.
bb Select the Mode/Arm field, then select Immediate.
44
Set up the Marker menu.
aa Press the Marker key.
bb Move the cursor to the T Markers field. Press Select, and then press On.
cc If the V markers are On, turn the V markers Off by moving the cursor to the V markers
field and pressing Select.

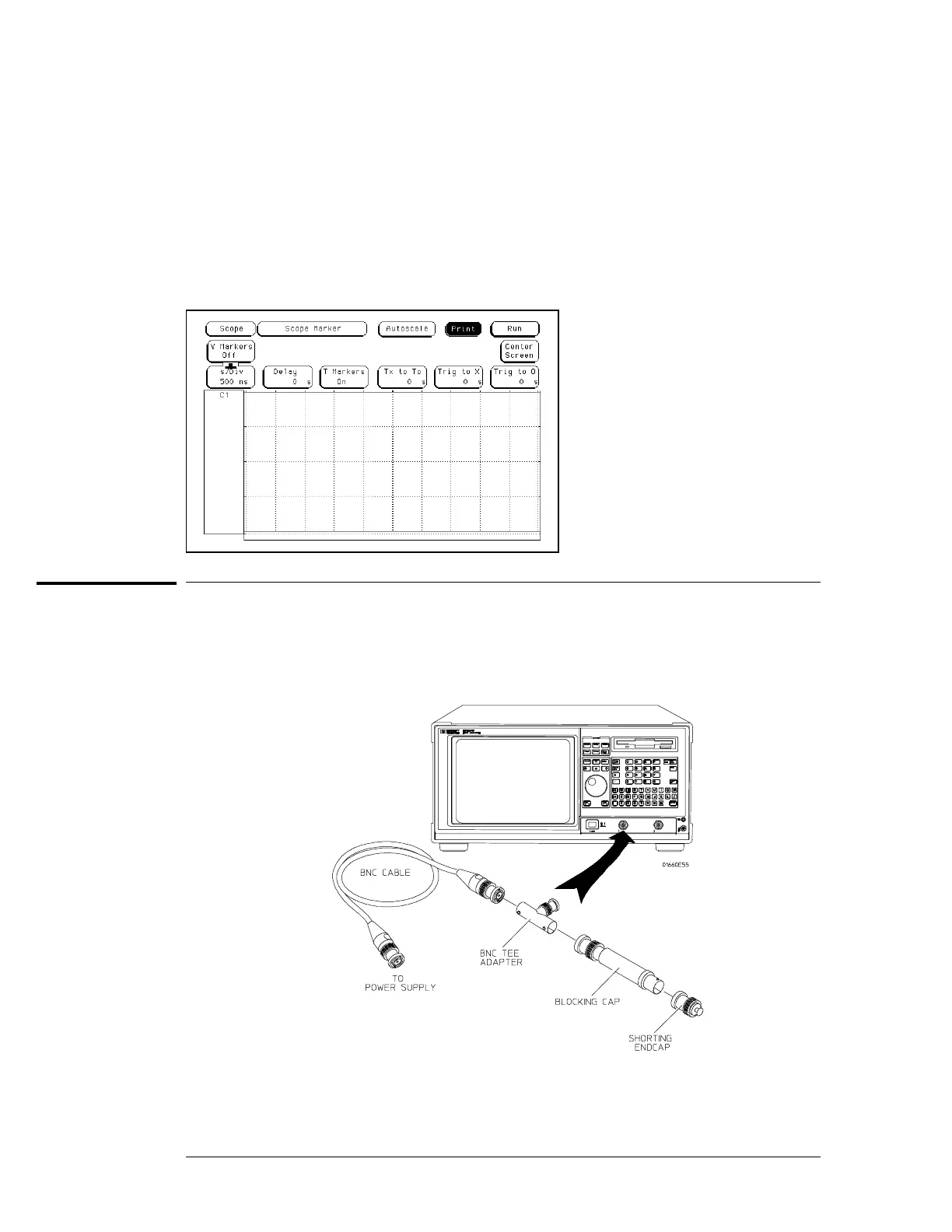

Connect the logic analyzer
11 Using a BNC-to-banana adapter, connect one end of the cable to the power supply. Connect
the BNC tee, the blocking capacitor, and the shorting endcap to the other end of the cable.
22
Monitor the power supply output with the Digital Multimeter.
To test the offset accuracy (oscilloscope)
3–78

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
