HP 1660 Series User Manual

Verify the DC CAL OUTPUT port

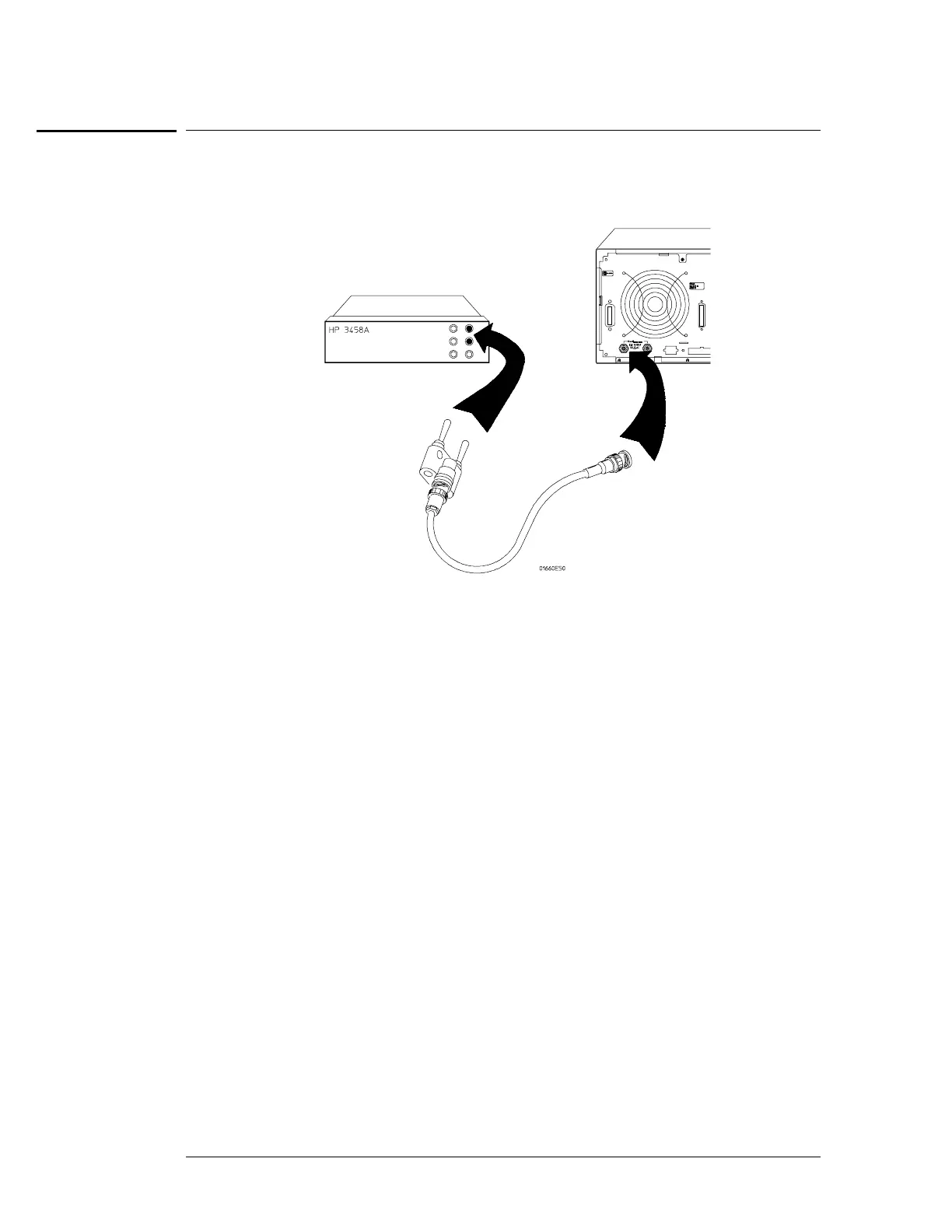

11 Using the BNC-to-banana adapter, connect the BNC cable between the multimeter
and the oscilloscope DC CAL OUTPUT connector.
22 The digital voltmeter should read close to 0.0000 V. Record the reading to four
decimal places. V
1
= _______.
33 In the Calibration menu set the DC Volts to 5 V.
44 The digital voltmeter should read close to 5.0000 V. Record the reading to four
decimal places. V
2
= _______.
55 In the Calibration menu set the DC Volts to 0 V.
66 Subtract V
1
from V
2
. The difference should be between 4.990 and 5.010 V. Record
the reading in the performance test record.
To test the CAL OUTPUT ports (oscilloscope)
3–66

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
