HP 1660 Series User Manual

To run the self-tests
Self-tests identify the correct operation of major functional areas of the instrument. You can
run all self-tests without accessing the interior of the instrument. If a self-test fails, the
troubleshooting flowcharts instruct you to change a part of the instrument.
1 1
If you just did the power-up self-tests, go to step 2.
If you did not just do the power-up self-tests, disconnect all inputs, then turn on the
power switch. Wait until the power-up tests are complete.

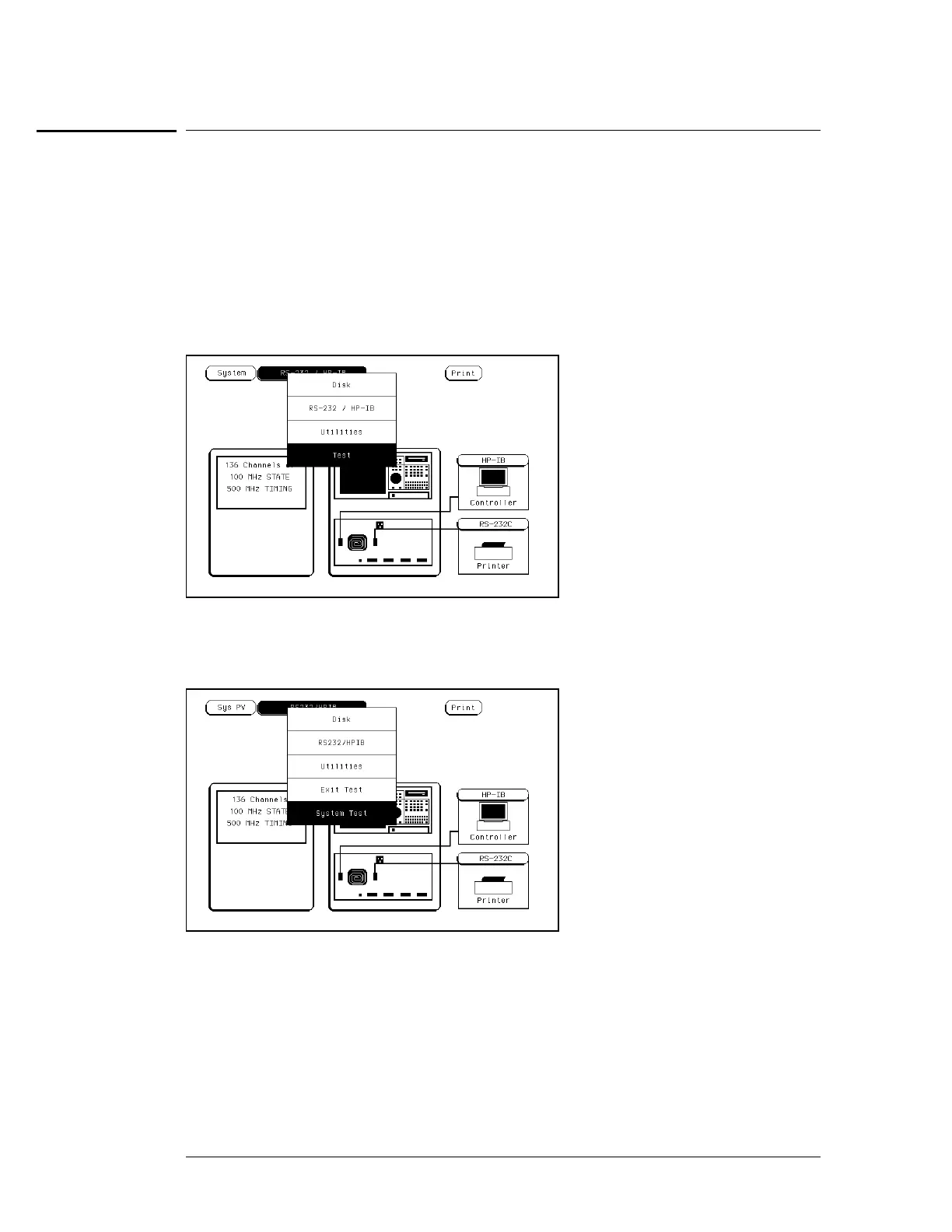

22 Press the System key, then select the field next to System. Then, select Test in the
pop-up menu.
33 Insert the disk containing the performance verification tests (self-tests) into the disk
drive. Select the box labeled Load Test System, then select Continue.
44 Press the System key, then select then field next to Sys PV. Select System Test to
access the system tests.
Troubleshooting
To run the self-tests
5–16

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
