HP 1660 Series User Manual

Connect the logic analyzer
11 Using the 6-by-2 test connectors, connect the first combination of logic analyzer
clock and data channels listed in one of the following tables to the pulse generator.
If you are testing an HP 1660A or HP 1661A, you will repeat this test for the second
combination.
22
Using the SMA cables, connect channel 1, channel 2, and trigger from the
oscilloscope to the pulse generator.

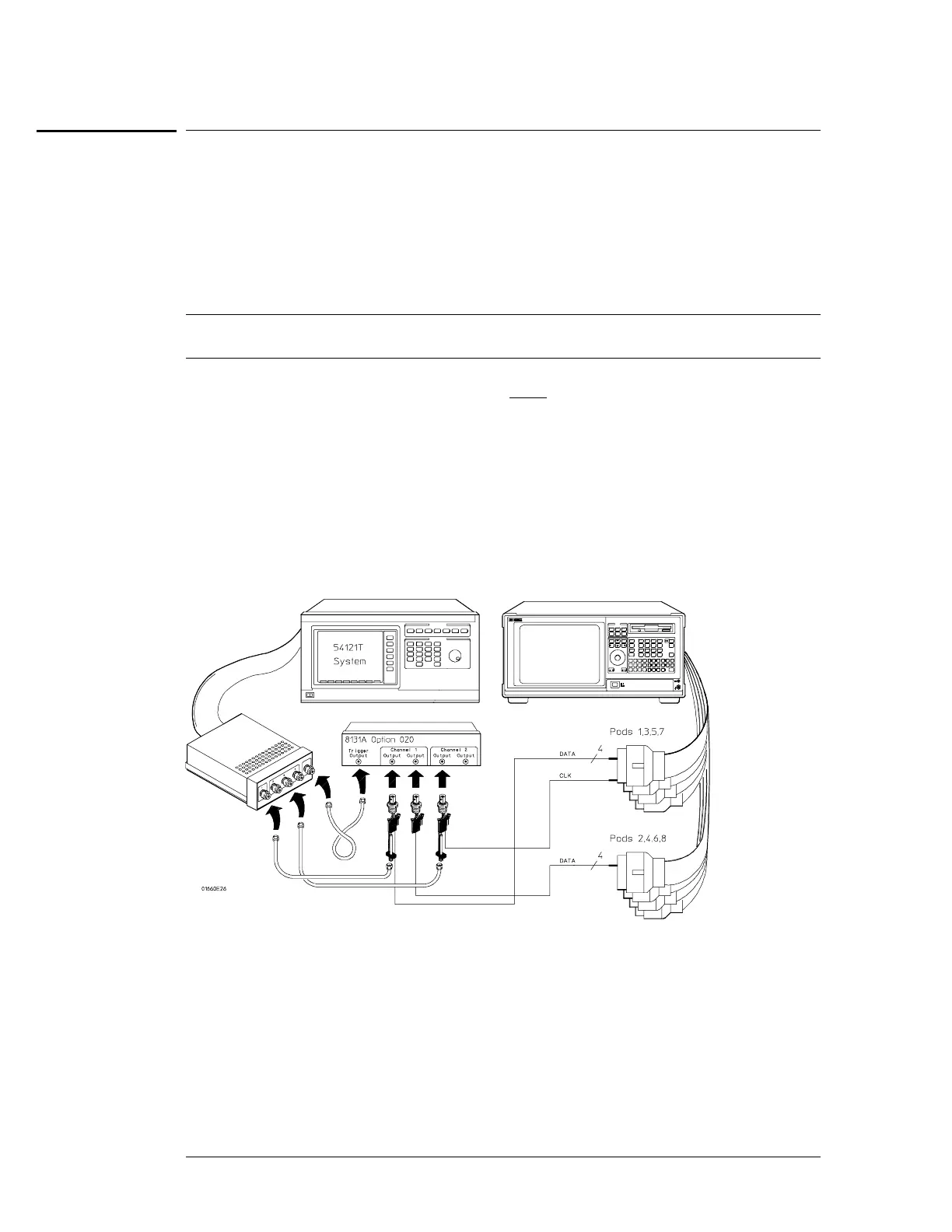

Connect the HP 1660A or HP 1661A Logic Analyzer to the Pulse Generator
Testing
Combinations
Connect to
HP 8131A
Channel 1 Output
Connect to
HP 8131A
Channel 1
Output
Connect to
HP 8131A
Channel 2 Output
1 Pod 1, channel 3
Pod 3, channel 3
Pod 5, channel 3
Pod 7, channel 3
Pod 2, channel 3
Pod 4, channel 3
Pod 6, channel 3
Pod 8, channel 3
J-clock
2 Pod 1, channel 11
Pod 3, channel 11
Pod 5, channel 11
Pod 7, channel 11
Pod 2, channel 11
Pod 4, channel 11
Pod 6, channel 11
Pod 8, channel 11
J-clock
To test the single-clock, multiple-edge, state acquisition (logic analyzer)
3–50

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
