HP 1660 Series User Manual

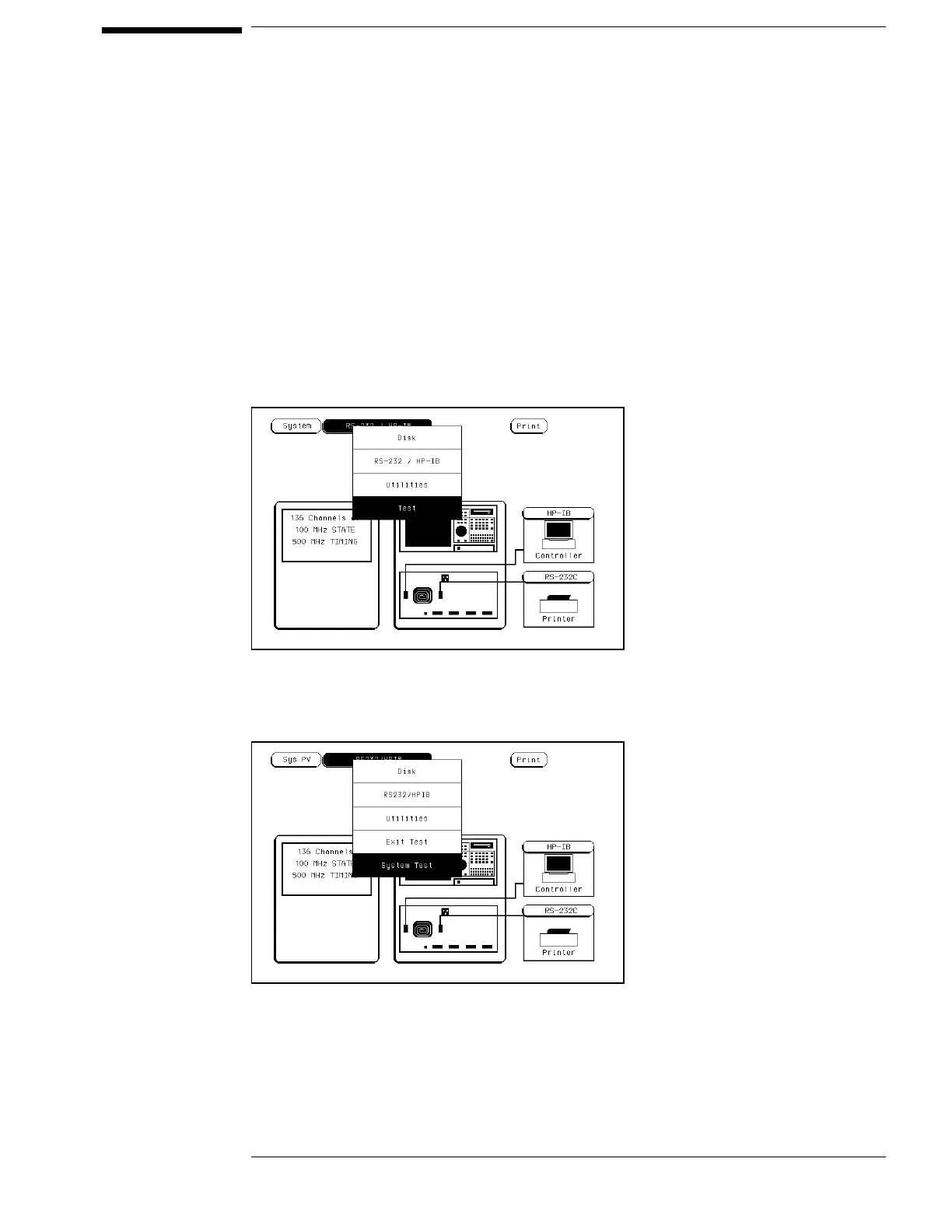

To perform the self-tests
The self-tests verify the correct operation of the logic analyzer. Self-tests can be
performed all at once or one at a time. While testing the performance of the logic
analyzer , r un t he self-t ests all at once.
The performance verification ( PV) self-tests consist of syst em PV tests, analyzer PV
tests, and oscilloscope PV tests (HP 1660AS series only) .
11 Disconnect all inputs, then turn on the power switch. Wait until the power-up tests
are complete.
22 Press the System key. Select the field next to System, then select Test in the pop-up
menu.
33 Insert the disk containing the performance verification (self-tests) into the disk
drive. Select the box labeled Load Test System, then select Continue.
44 Press the System key. Select the fi eld next to Sys PV, then select System Test in the
pop-up menu.
3–3

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
