33 Set up the function generator according to the following table.

Function Generator Setup

Freq: 200 000 . 0 Hz Main Function: Square wave

Amptd: 3.000 V High Voltage: Disabled (LED Off)

Phase: 0.0 deg

DC Offset: 0.0 V

Set up the logic analyzer

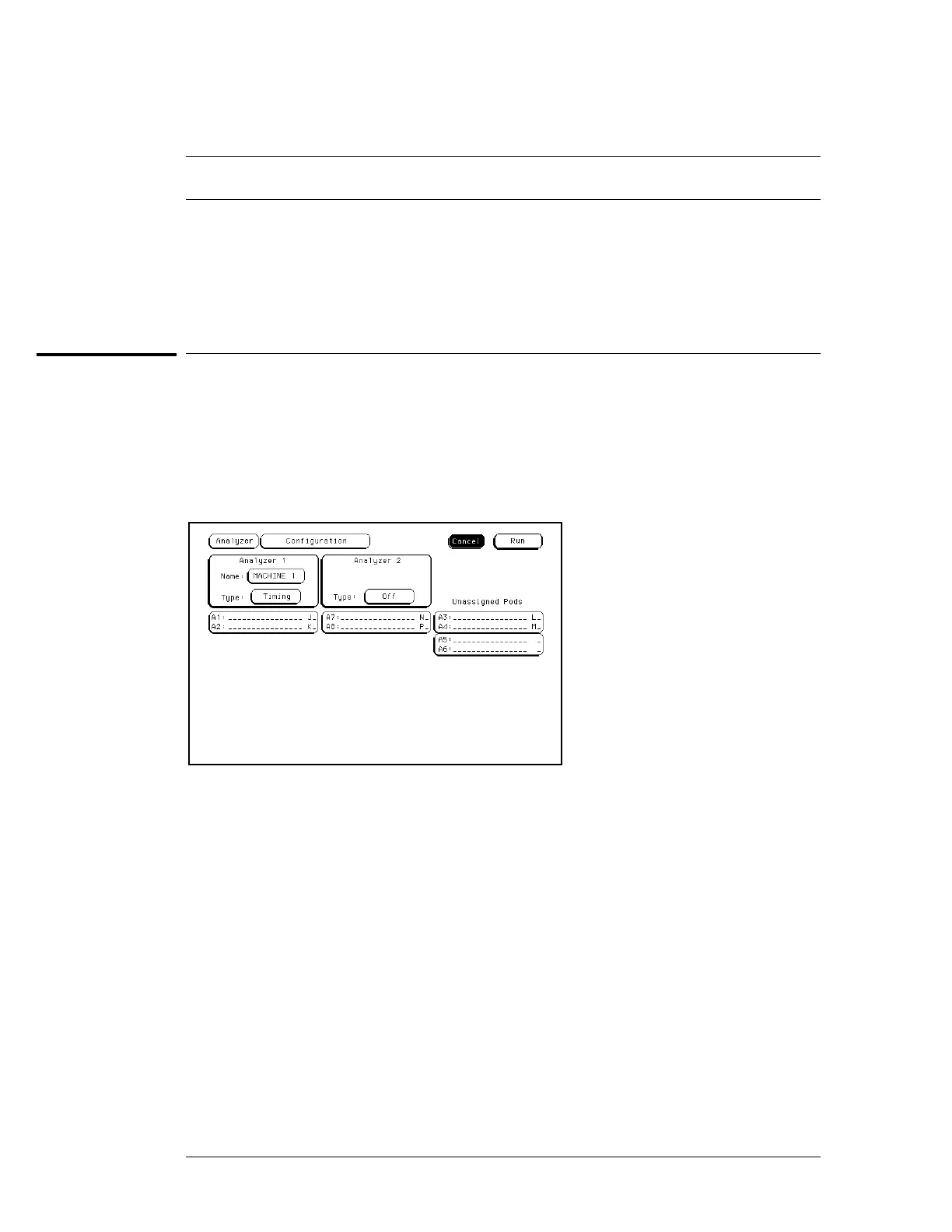

11 Set up the Configuration menu.

aa Press the Config key.

bb In the Configuration menu, assign Pod 1 to Machine 1. To assign Pod 1, select the

Pod 1 field, then select Machi ne 1.

cc In the Analyzer 1 box, select the Type field, then select Timing.

To test the time interval accuracy (logic analyzer)

3–60
