Test the 0 V User threshold

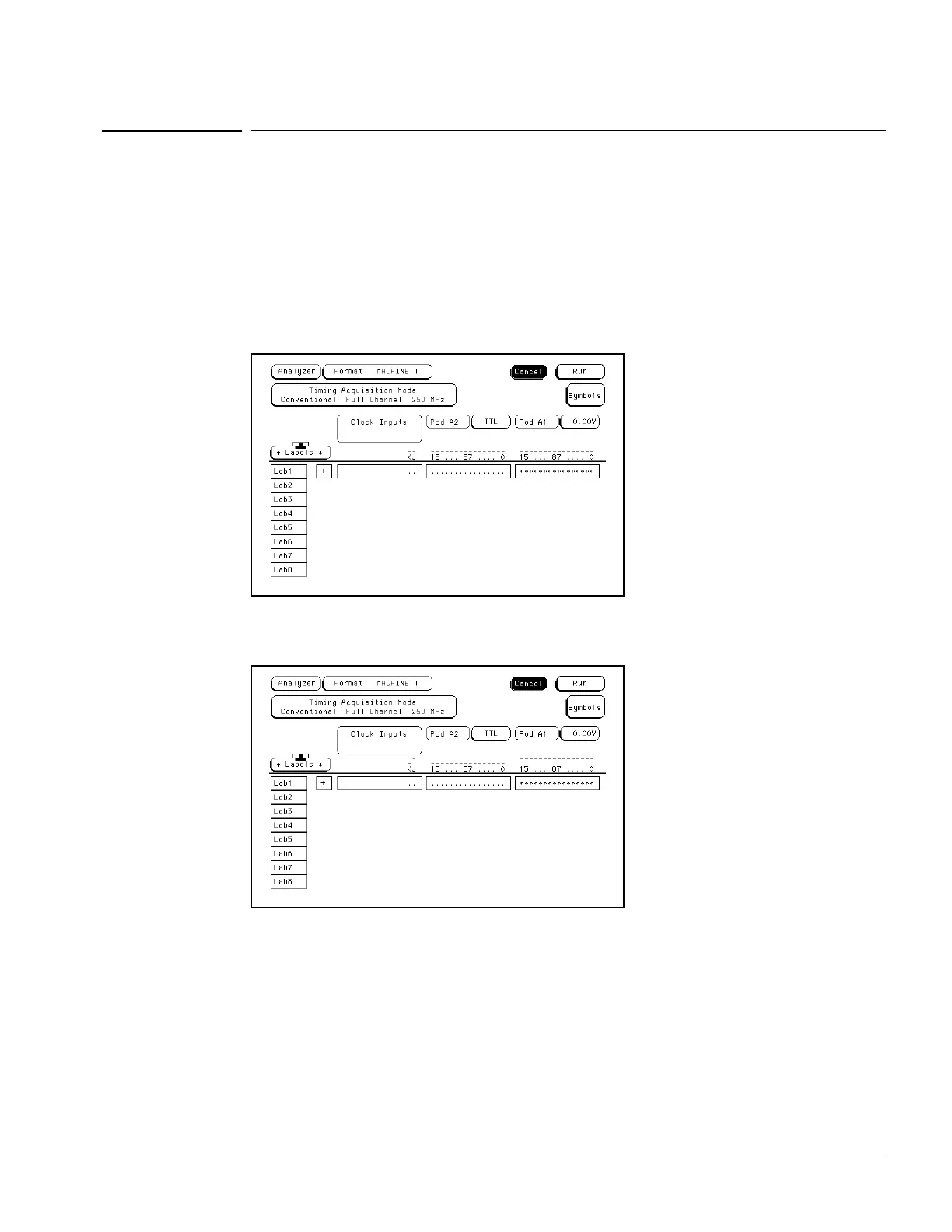

11 Move the cursor to the field to the right of Pod 1. Type 0, then press the Select key.
22 On the function generator front panel, enter +0.102 V ± 1 mV DC offset. Use the
multimeter to verify the voltage.
The activity indicators for pod 1 should show all data channels and the J-clock channel at a
logic high.
33
Using the Modify down arrow on the function generator, decrease offset voltage in
1-mV increments until all activity indicators for pod 1 show the channels at a logic
low. Record the function generator voltage in the performance test record.
44 Using the Modify up arrow on the function generator, increase offset voltage in
1-mV increments until all activity indicators for pod 1 show the channels at a logic
high. Record the function generator voltage in the performance test record.
Testing Performance
To test the threshold accuracy (logic analyzer)
3–15

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
