HP 1660 Series User Manual

33 Set up the oscilloscope.
Oscilloscope Setup
Time Base Display Delta V Delta T
Time/Div: 1.00 ns/div avg V markers on T markers on
# of avg: 16 marker 1 position: Chan 1 start on: Pos Edge 1
screen: dual marker 2 position: Chan 1 stop on: Neg Edge 1
Channel
Channel 1 Channel 2
Display on on
Probe Atten 20.00 20.00
Offset − 1.3 V − 1.3 V
Volts/Div 400 mV 400 mV
Set up the logic analyzer

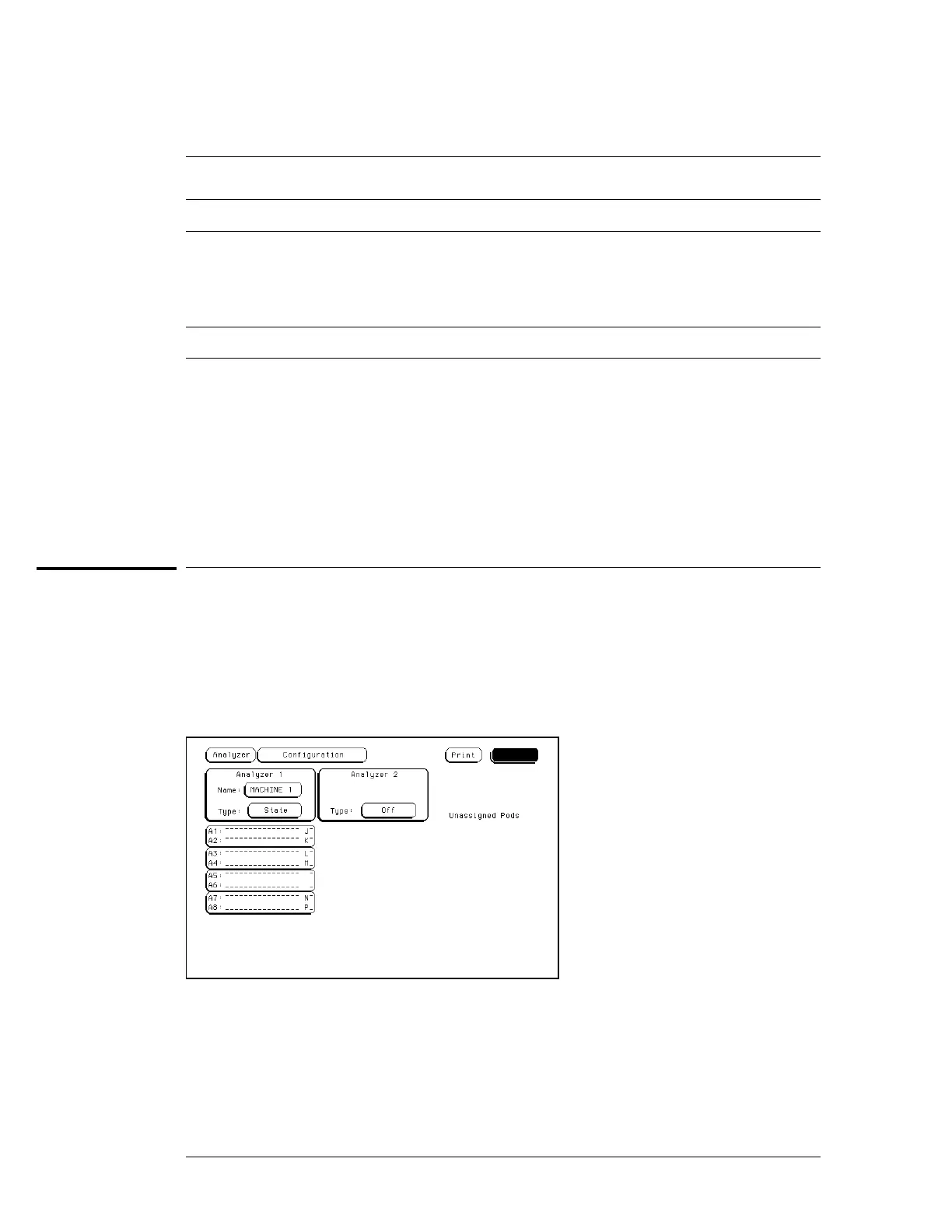

11 Set up the Configuration menu.
aa Press the Config key.
bb In the Configuration menu, assign all pods to Machine 1. To assign the pods, select
the pod fields, then select Machine 1 in the pop-up menu.
cc Select the Type field in the Analyzer 1 box, then select State.
Testing Performance
To test the single-clock, single-edge, state acquisition (logic analyzer)
3–24

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
