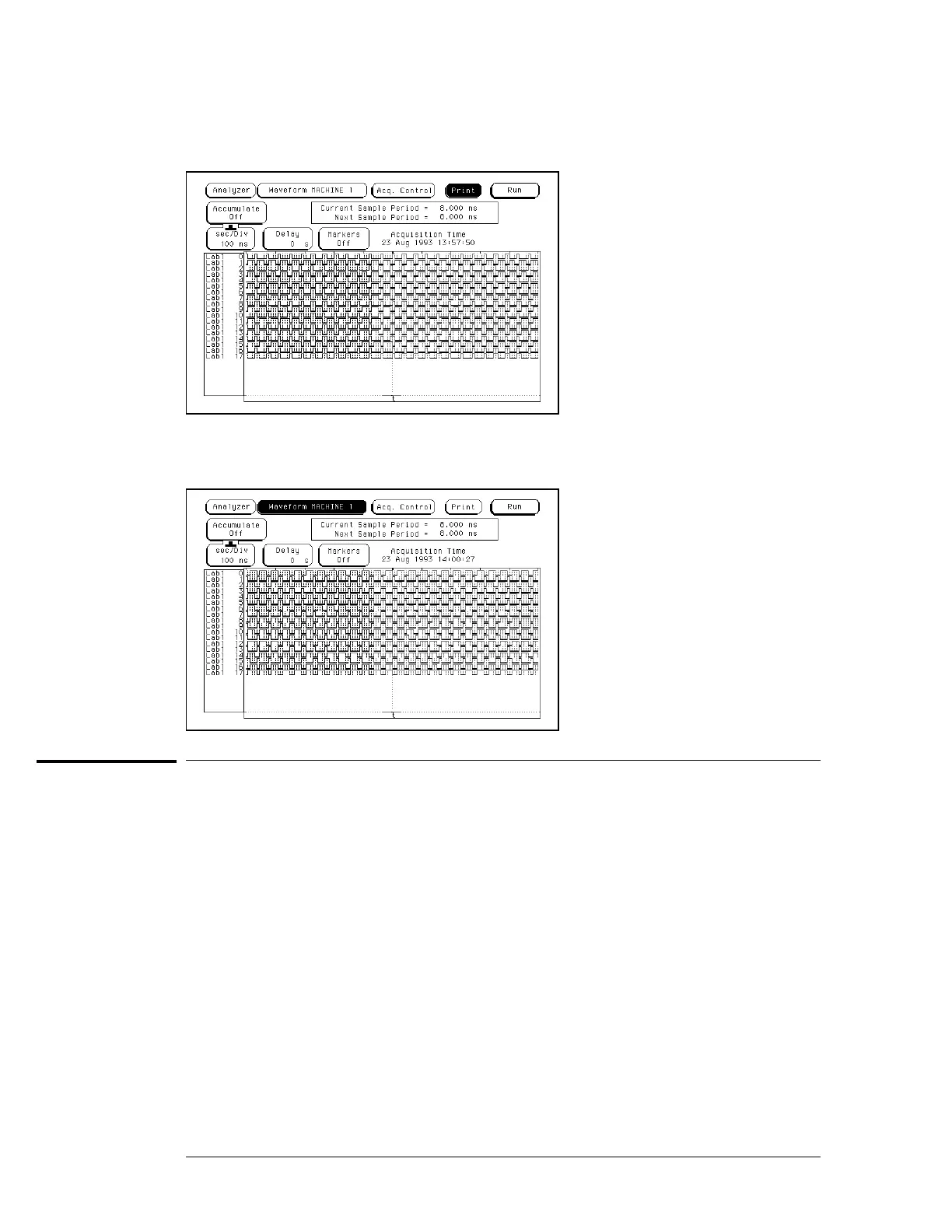

66 On the logic analyzer, press the Run key. The display should be similar to the figure
below.
77 On the pulse generator, enable Channel 1 and Channel 2 COMP (with the LED on).
88 On the logic analyzer, press the Run key. The display should be similar to the figure
below. Record Pass or Fail in the performance test record.
Test the next channels
• Return to "Connect the logic analyzer" on page 3–18 and connect and test the next
combination of data and clock channels until all pods are tested.
To access pods 2, 4, 6, or 8 in the Format menu, select pods 1, 3, 5, or 7 fields, then select
the other pod in the pop-up menu. Use the knob to access pods that are not shown on the
screen.
Testing Performance
To test the glitch capture (logic analyzer)
3–22

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
