Set up the logic analyzer

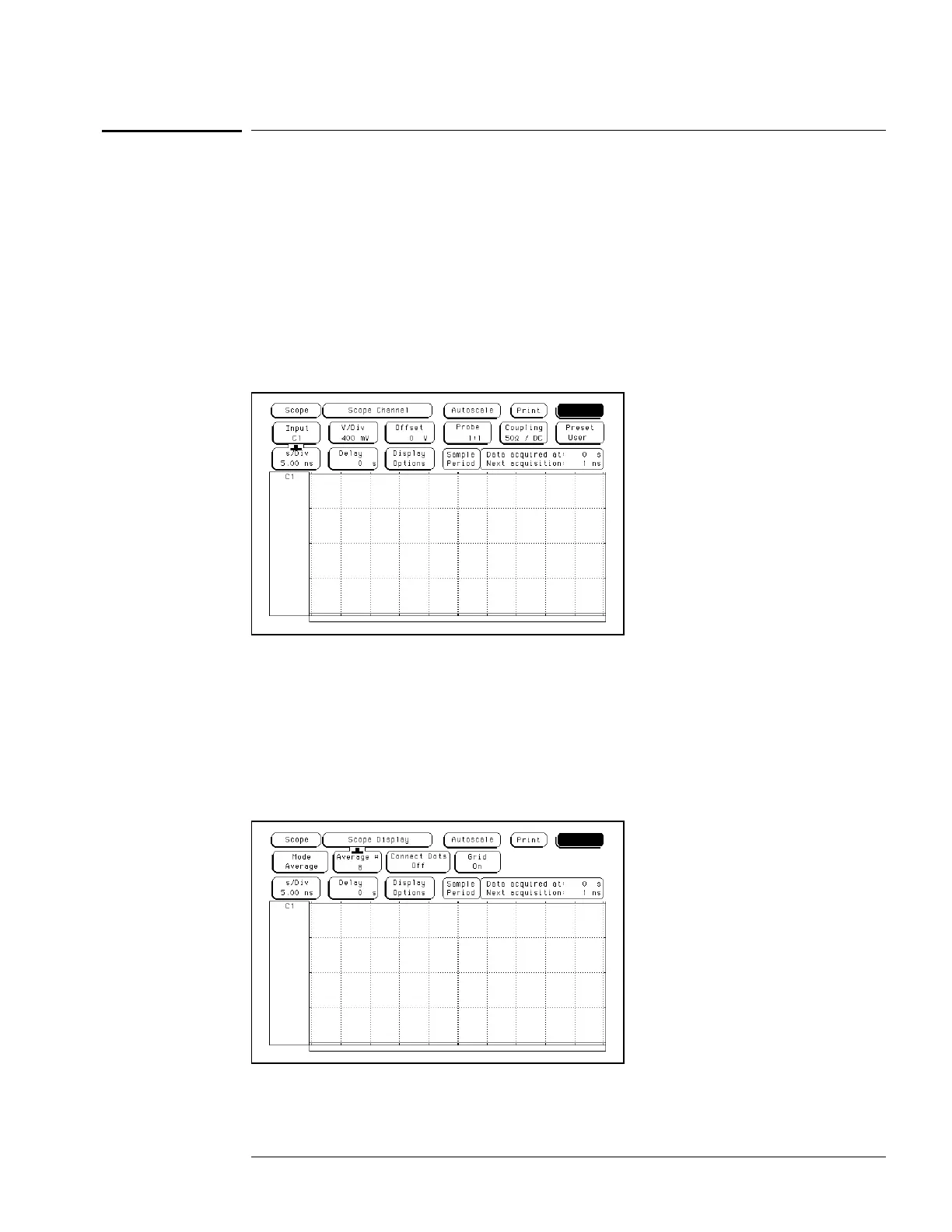

1111 Set up the Configuration menu.
aa Press the Config key. At the pop up menu, select Scope Channel.
bb Select the Input field, then select C1.
cc Move the cursor to the Probe field, then use the RPG knob to dial in 1:1.
dd Move the cursor to the V/Div field, then use the PRG knob to dial in 400 mV.
ee Move the cursor to the Offset field. Set the offset to 0 by typing 0, then pressing the
Select key.
ff Move the cursor to the Coupling field, then press Select. Select 50Ω / DC.
gg Move the cursor to the s/Div field, then use the RPG knob to dial in 5.00 ns.
22
Set up the Display menu.
aa Press the Display key.
bb Select the Mode/Arm field, then select Average.
cc Move the cursor to the Average # field. Enter "8" in the front-panel keyboard, then
press Done.
dd Select the Grid field and set it to On.
ee In the Waveform selection menu, delete channel 2. If channel 1 is not inserted, insert
channel 1.
To test the trigger sensitivity (oscilloscope)
3–91
