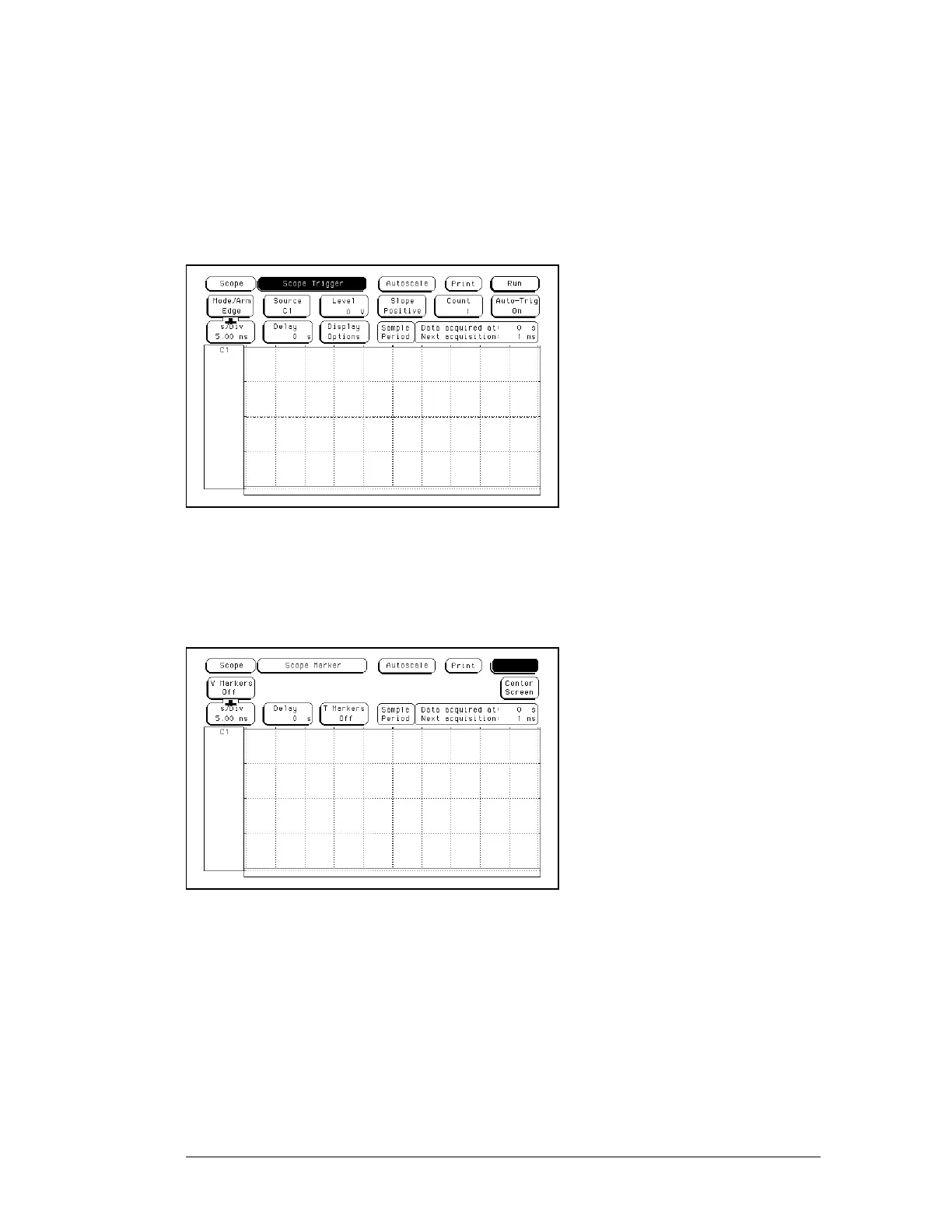

33 Set up the Trigger menu.

aa Press the Trigger key.

bb Select the Mode/Arm field, then select Edge.

cc Select the Source field and set it to C1.

dd Move the cursor to the Level field. Set the trigger level to 0 by typi ng 0 in the

front-panel keyboard, then pressing Select.

Turn off the voltage and time markers.

aa Press the Marker key.

bb Move the cursor to the V Markers field and press Select. The Select key should toggle

the marker to Off.

cc Move the cursor to the T Markers field and press Select. At the pop up menu, select

Off.

To test the trigger sensitivity (oscilloscope)
