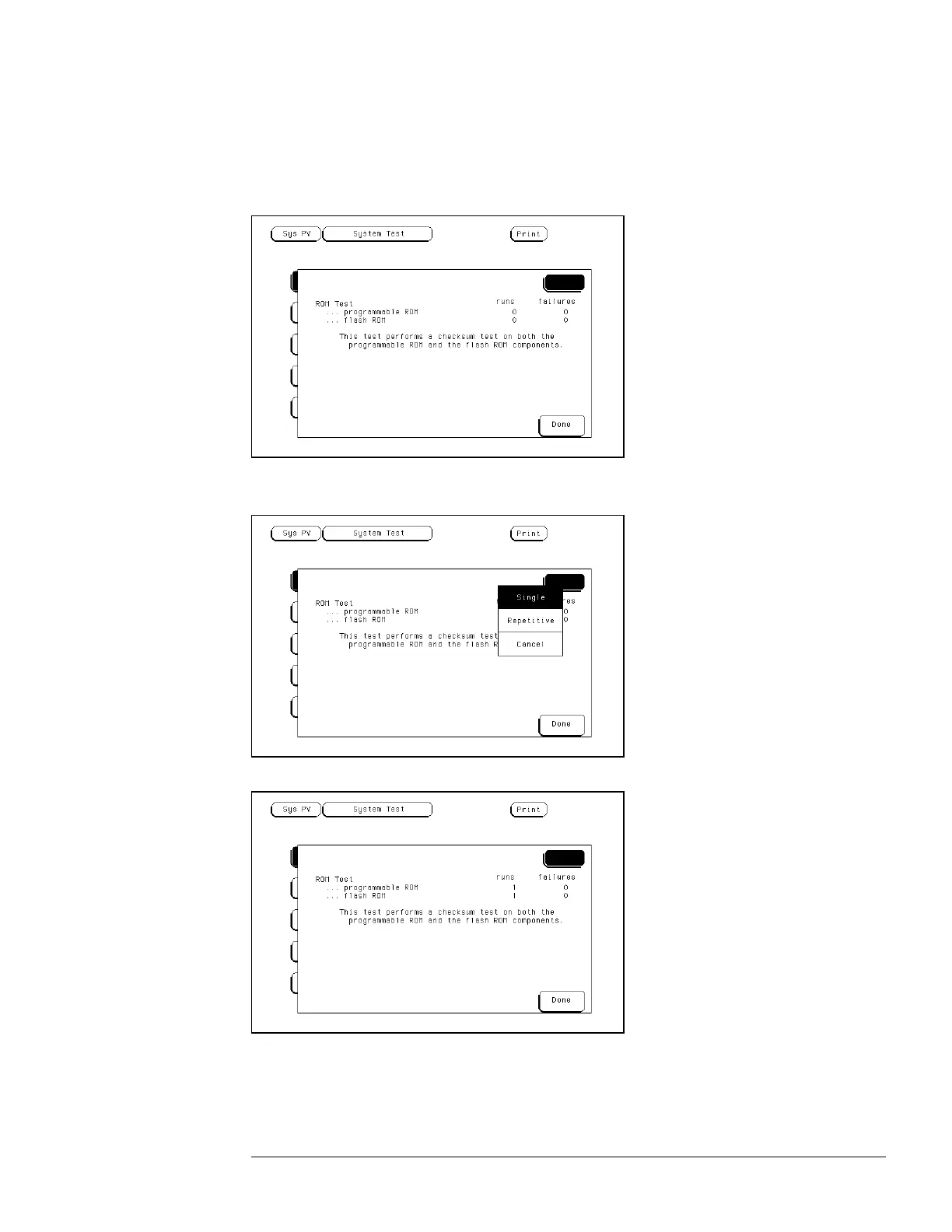

55 Select ROM Test. The ROM Test screen is di splayed.

You can run all tests at one time by running All System Tests. To see more details about

each test, you can run each test individually. This example shows how to run an individual

test.

66 Select Run, then select Single.

To run a test continuously, select Repetitive. Select Stop to halt a repetitive test.

For a Single run, the t est runs one t ime, and t he screen shows the result s.

Troubleshooting

To run the self-tests

5–17
