HP 1660 Series User Manual

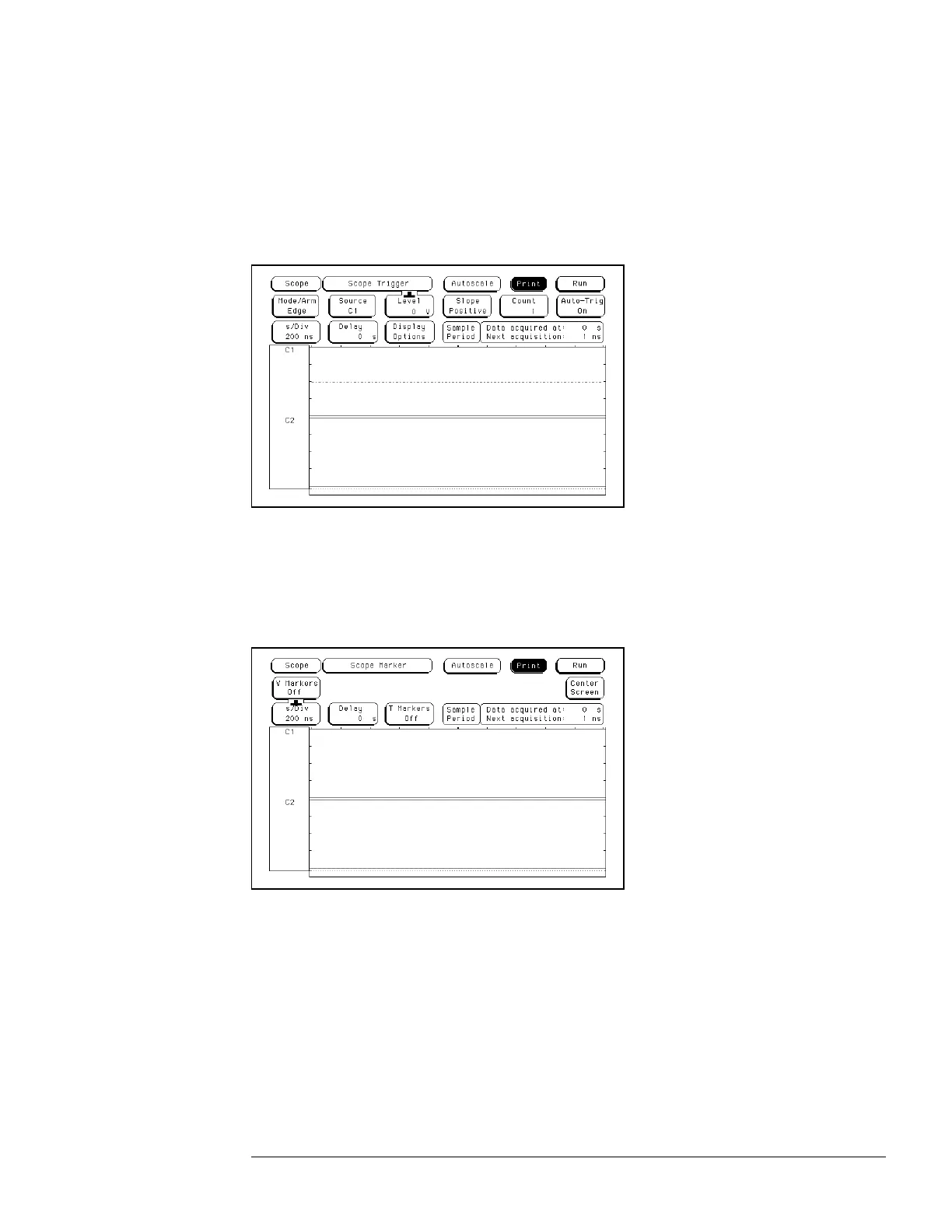

33 Set up the Trigger menu.
aa Press the Trigger key.
bb Select the Mode/Arm field, then select Edge.
cc Select the Source field, then select C1.
dd Move the cursor to the Level field. Set the trigger level to 0 by typi ng 0 in the
front-panel keyboard, then pressing Select.
44
Turn off the voltage and time markers.
aa Press the Marker key.
bb Move the cursor to the V Markers field and press Select. The Select key should toggle
the marker to Off.
cc Move the cursor to the T Markers field and press Select. At the pop up menu, select
Off.
To test the bandwidth (oscilloscope)
3–83

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
