HP 1660 Series User Manual

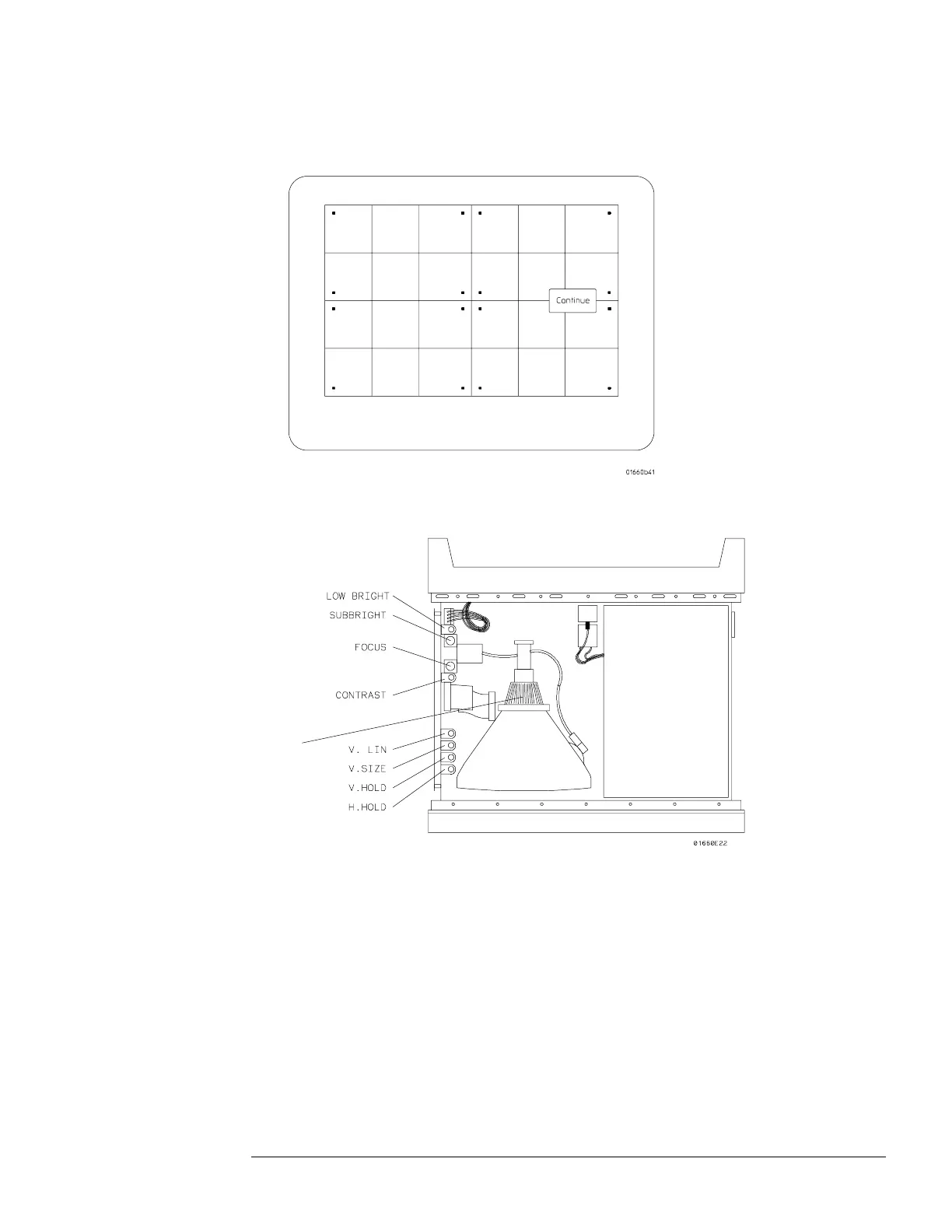

44 Enter the Sys PV tests, then enter the Display Test.
A grid pattern should appear.
55
If the display is tilted (rotated), adjust the CRT yoke by rotating it to straighten the
display.
66 If the grid pattern is not centered horizontally, adjust the H-Hold.
77 If you need to adjust the intensity, go to the next page.
If you are finished with the adjustments, turn off the instrument, then remove the
power cord. Install the cover on the instrument.
Yoke
Calibrating and Adjusting
To adjust the CRT monitor alignment
4–7

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
