HP 1660 Series User Manual

WARNING
Do not touch the CRT monitor sweep board. High voltages exist on the sweep board that
can cause personal injury.
77
The light power meter should read 137-154 cd/m
2
. If the measurement is out of this
range, use the adjustment tool to adjust the Contrast potentiometer on the monitor
driver board.
88 Press the front panel Select key.
The display should show a half bright t est screen.
99
Place the light power meter against the display at center screen. The light power
meter should read 5-27 cd/m
2
.
If the reading is not correct, try adjusting the contrast in step 7 closer to the limit.
1010
Press the front panel Select key.
The logic analyzer should exit t he Display Test .
1111
Place the light power meter against the display at center screen. Adjust the rear
panel intensity adjustment until the light power meter reads 45-55 cd/m
2
.
1212 Exit the functional performance verification tests.
1313 Turn off the instrument, then remove the power cord. Install the cover on the
instrument.
Calibrating and Adjusting

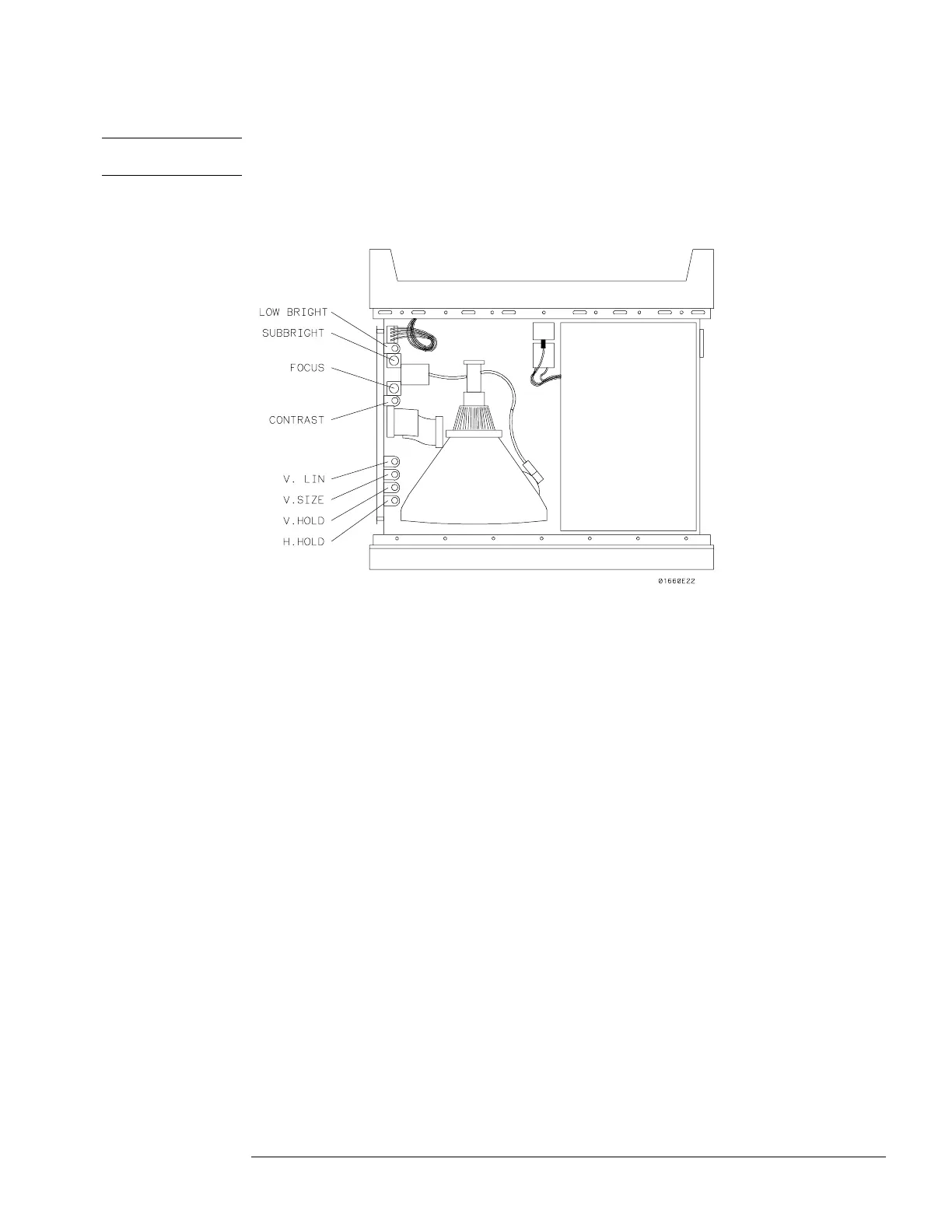

To adjust the CRT intensity
4–9
