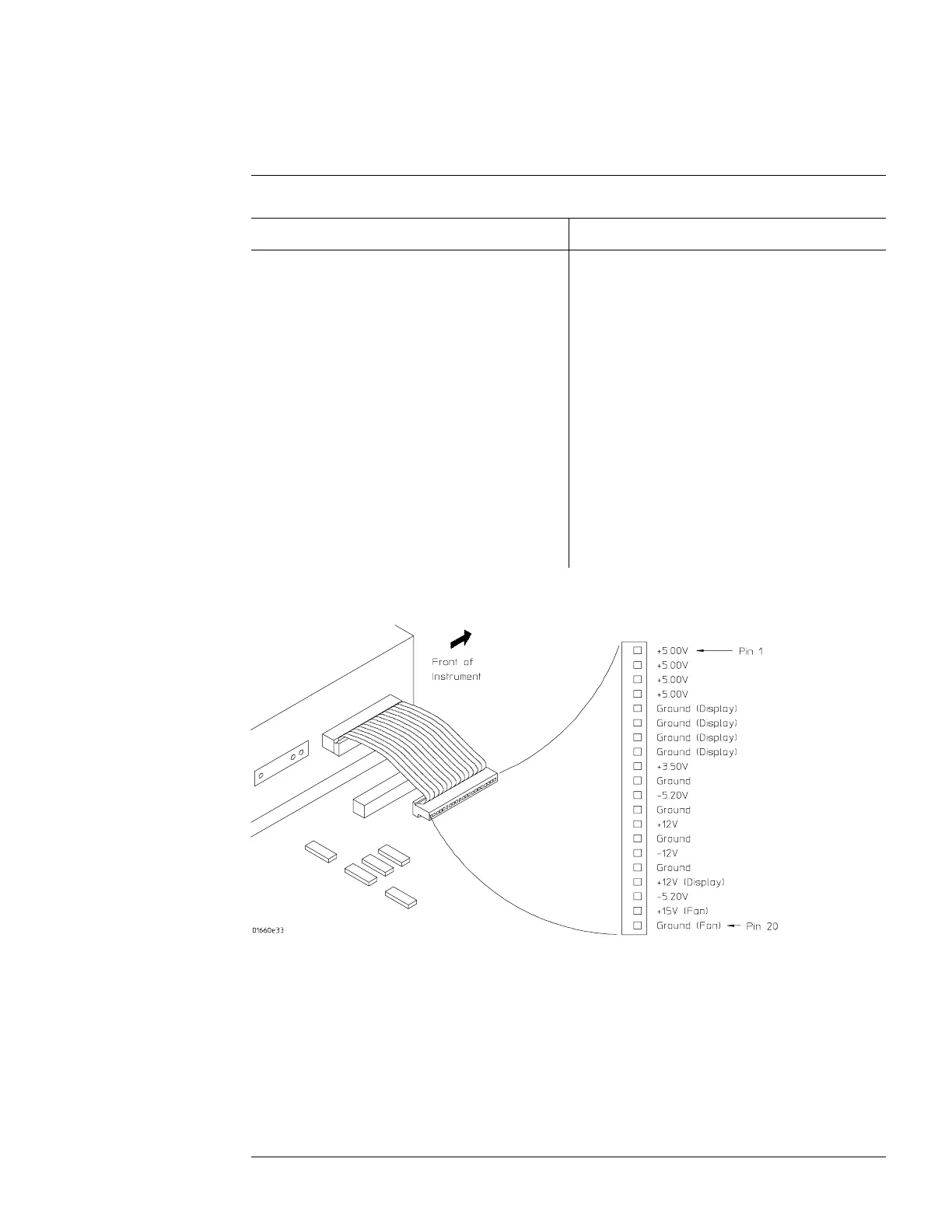

66 Check for the voltages on the power supply cable using the values in the following

table.

Signals on the Power Supply Cable

Pin Signal Pin Signal

1 +5.00 V 11 –5.20 V

2 +5.00 V 12 Ground

3 +5.00 V 13 +12 V

4 +5.00 V 14 Ground

5 Ground (Digital) 15 –12 V

6 Ground (Digital) 16 Ground

7 Ground (Digital) 17 +12 V (Display)

8 Ground (Display) 18 –5.20 V

9 +3.50 V 19 +15 V (Fan)

10 Ground 20 Ground (Fan)

Troubleshooting

To test the power supply voltages

5–23
