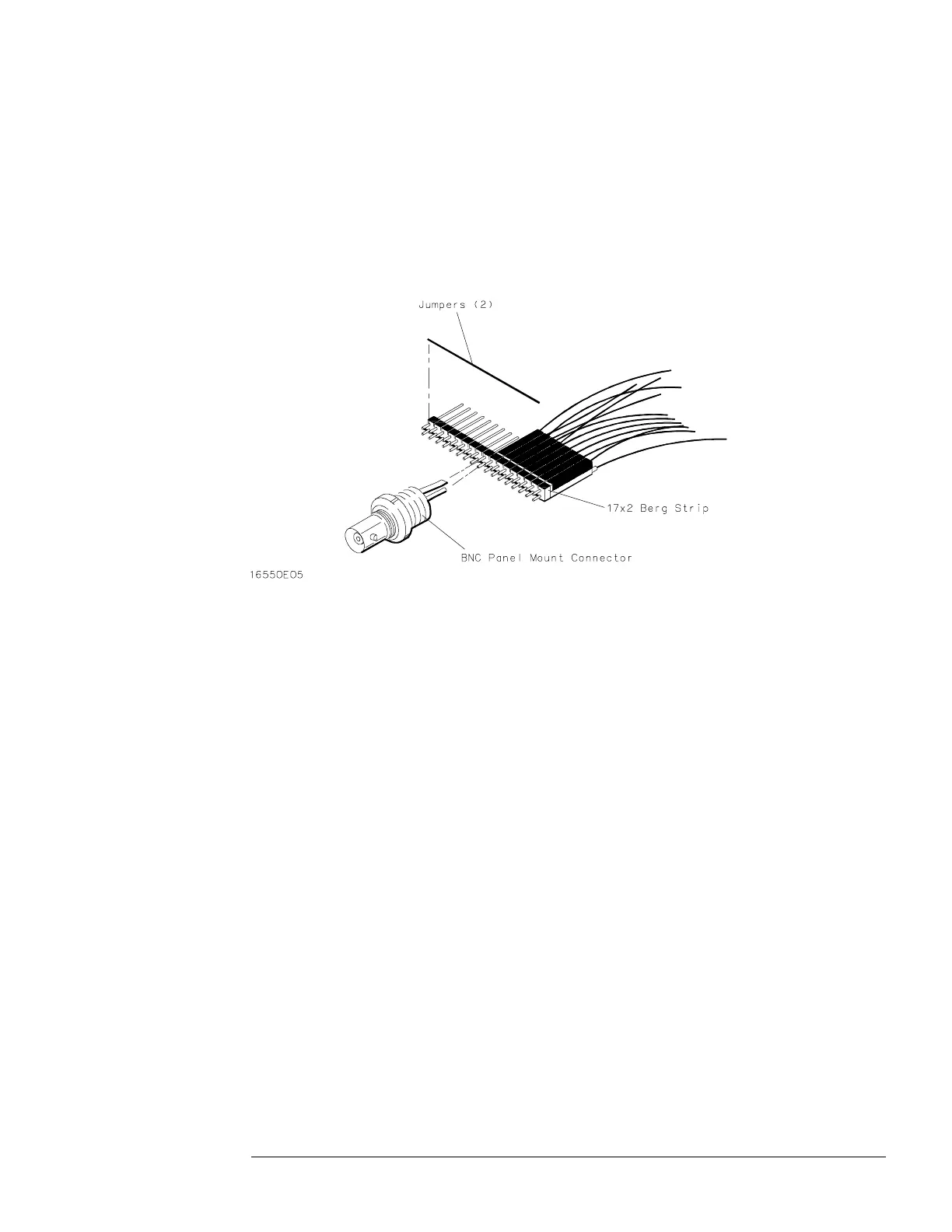

22 Build one test connector using a BNC connector and a 17-by-2 section of Berg strip.

aa Solder a jumper wire to all pins on one side of the Berg strip.

bb Solder a jumper wire to all pins on the other side of the Berg strip.

cc Solder the center of the BNC connector to the center pin of one row on the Berg strip.

dd Solder the ground tab of the BNC connector to the center pin of the other row on the

Berg strip.

Testing Performance

To make the test connectors (logic analyzer)

3–7
