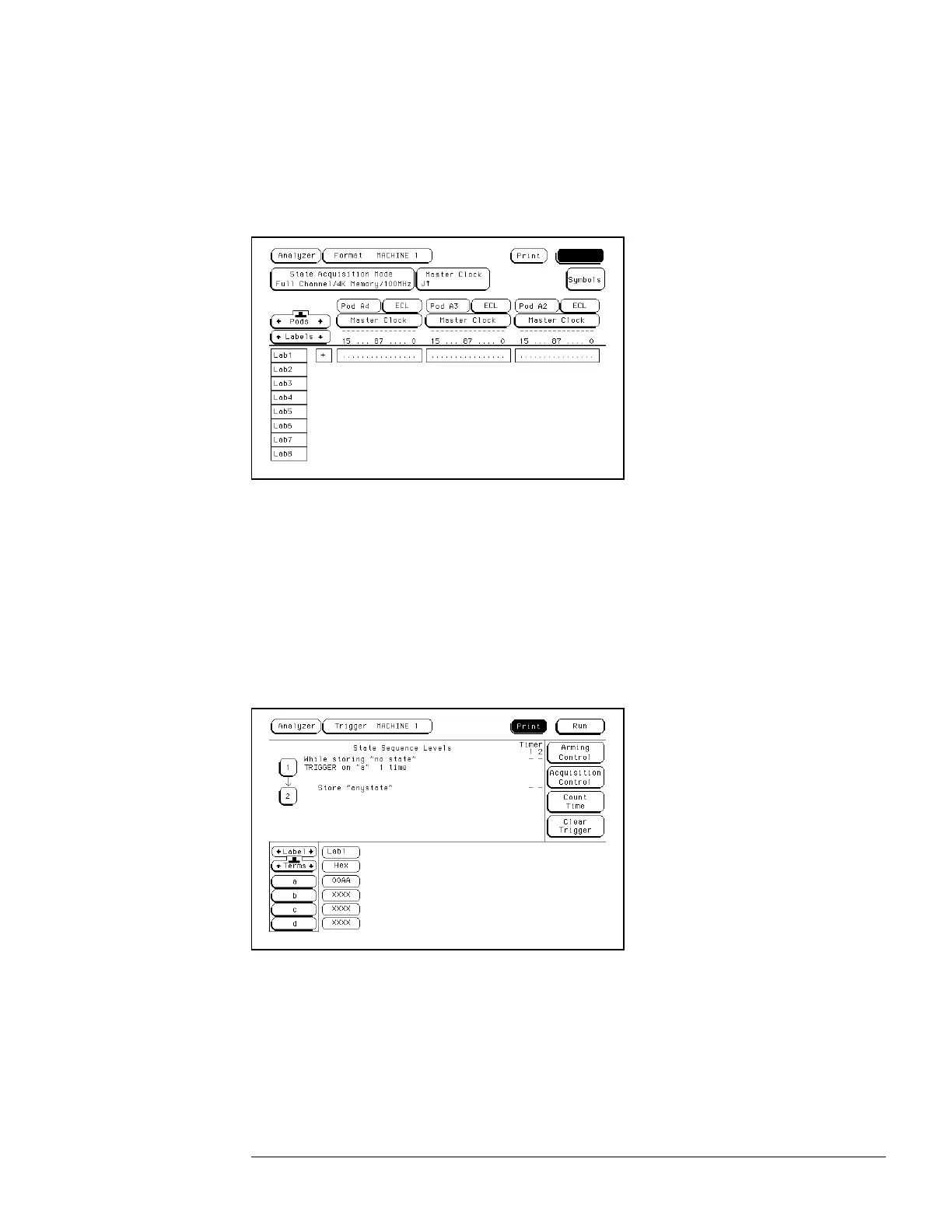

22 Set up the Format menu.
aa Press the Format key. Select State Acquisition Mode, then select Full Channel/4K
Memory/100MHz.
bb Select the field to the right of each Pod field, then select ECL. The screen does not
show all Pod fields at one time. Use the knob to access more Pod fields.
33
Set up the Trigger menu.
aa Press the Trigger key. Select Clear Trigger, then select All.
bb Select the Count Off field, then select Time in the pop-up menu. Select Done to exit
the menu.
cc Select the field labeled 1 under the State Sequence Levels. Select the field labeled
"anystate", then select "no state." Select Done to exit the State Sequence Levels menu.
dd Select the field next to the pattern recognizer "a," under the label Lab1. Type the
following for your logic analyzer, then press Select.
HP 1660A–"00AA" HP 1662A–"00AA"
HP 1661A–"002A" HP 1663A–"000A"
To test the multiple-clock, multiple-edge, state acquisition (logic analyzer)
3–37

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
