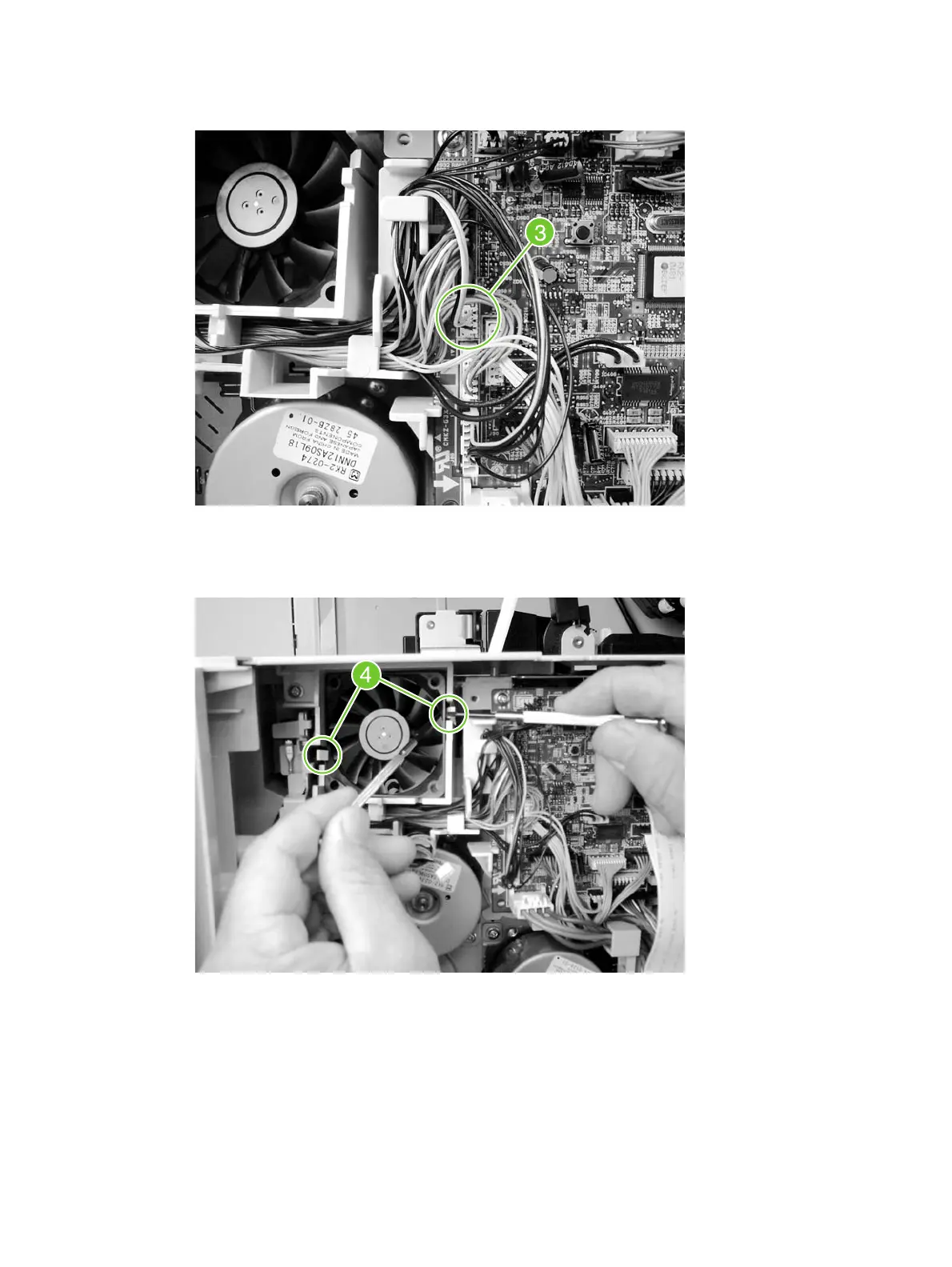

4. Disconnect the fan connector (J78, callout 3) from the DC controller.
Figure 5-113 Remove the print-cartridge fan (3 of 4)
5. Use a small, flat-blade screwdriver to release the locking tabs that are on each side of the fan
(callout 4). Insert a second flat-blade screwdriver behind the fan, and push the fan out.
Figure 5-114 Remove the print-cartridge fan (4 of 4)
Print-cartridge motor (M102)
1. Remove the back cover.
2. Remove the print-cartridge fan.
ENWW Internal assemblies 287
manuals4you.commanuals4you.com

HP LaserJet M4345 MFP Specifications

General

Print Technology	Laser
Functions	Print, copy, scan, fax
Print Speed	Up to 45 ppm
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Input Capacity	600 sheets
Standard Output Capacity	250 sheets
Scanner Type	Flatbed, ADF
Maximum Scan Size	216 x 356 mm
Duplex Printing	Automatic
Memory, standard	256 MB
Memory, maximum	512 MB
Hard Disk	Optional
Print Languages	HP PCL 6, HP PCL 5e, HP Postscript Level 3 emulation
Paper Handling Input, Standard	100-sheet multipurpose tray, 500-sheet input tray
Scan Resolution, Optical	Up to 600 dpi
Scan Speed (Normal, A4)	Up to 45 ppm
Automatic Document Feeder Capacity	50 sheets
Copy Speed (Black, Normal Quality, A4)	Up to 45 cpm
Copy Resolution (Black Text)	Up to 600 x 600 dpi
Copy Reduce / Enlarge Settings	25 to 400%
Maximum Number of Copies	999
Fax Resolution	Up to 300 x 300 dpi
Fax Transmission Speed	3 sec per page
Connectivity	Ethernet
First Page Out	As fast as 8.5 sec
Display	LCD
Quick Dialing, Maximum Number	100 numbers
Operating System Compatibility	Windows, Mac, Linux
Network Ready	Standard (built-in Ethernet)
