Huawei SmartAX MA5608T User Manual

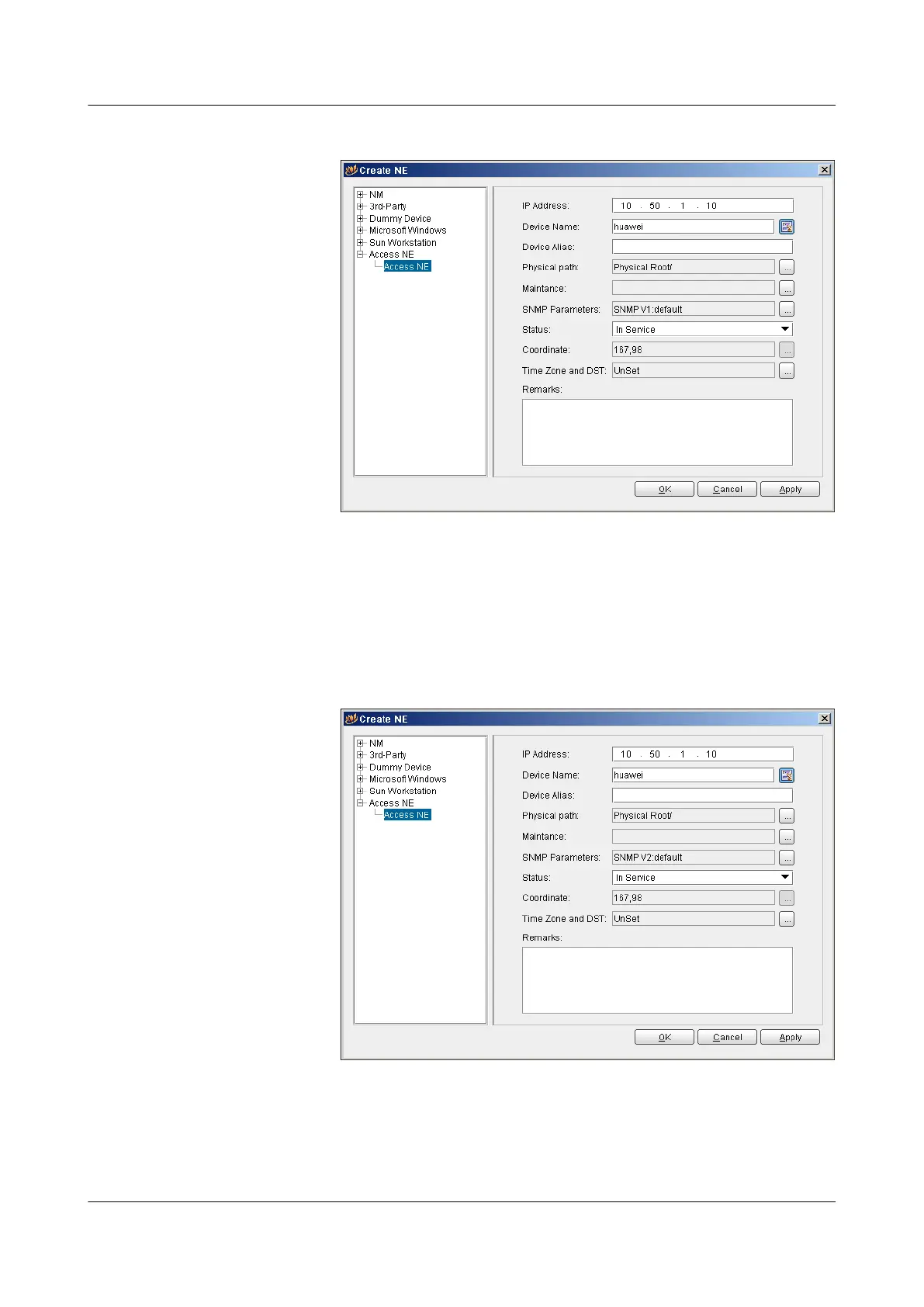

Figure 1-64 Add device
– When the SNMP V2 is used, In the dialog box that is displayed, set the
required parameters, as shown in the following figure.
IP Address is 10.50.1.10, Device Name is huawei, and SNMP
Parameters is SNMP V2:default.
Figure 1-65 Add device
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
154

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
